Industrial Ethernet / Din-Rail Managed Ethernet Switches / EDS-505A/508A Series

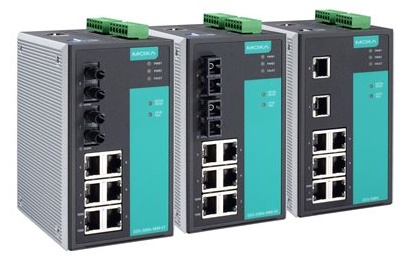

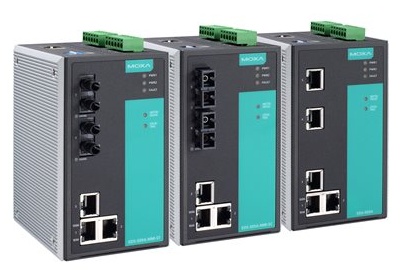

EDS-505A/508A Series

5 and 8-port managed Ethernet switches

EDS-505A/508A Series

Features and Benefits:

  • Command Line Interface (CLI) for quickly configuring major managed functions*
  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
  • DHCP Option 82 for IP address assignment with different policies
  • Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
  • Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
  • Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP* for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • RMON for efficient network monitoring and proactive capability
  • SNMPv1/v2c/v3 for different levels of network management
  • TACACS+*, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through e-mail, relay output

Certifications

  • moxa-atex-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

For EDS-505A Series   DATASHEET DOWNLOAD

For EDS-508A Series   DATASHEET DOWNLOAD



  GET A QUOTE


Introduction

The EDS-505A/508A are standalone 16-port managed Ethernet switches. With their advanced Turbo Ring and Turbo Chain technology (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D), the EDS-505A/508A switches increase the reliability and availability of your industrial Ethernet network. Models with an wide operating temperature range of -40 to 75°C are also available, and the switches support several reliable and intelligent functions, including IEEE 1588 PTP, Modbus/TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH, making the EDS-505A/508A switches suitable for any harsh industrial environment.
