Industrial Ethernet / Rackmount Ethernet Switches / IKS-G6824A Series

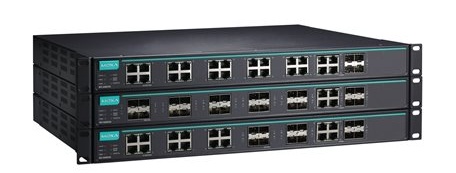

IKS-G6824A Series

24G-port Layer 3 full Gigabit managed Ethernet switches

IKS-G6824 Series

Features and Benefits:

  • Layer 3 routing interconnects multiple LAN segments (IKS-G6824A series)
  • 24 Gigabit Ethernet ports
  • Up to 24 optical fiber connections (SFP slots)
  • Fanless, -40 to 75°C operating temperature range (T models)
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Certification

  • moxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxamoxa-dnv-gl-certification-logo-image.png | Moxamoxa-en50121-4-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6824A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large scale industrial networks. The IKS-G6824A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
