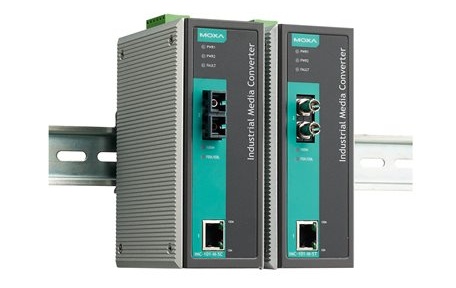

IMC-101 Series

Industrial 10/100BaseT(X) to 100BaseFX Media Converters

IMC-101 Series

Features and Benefits:

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFP) (media converters should work as a pair)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • -40 to 75°C operating temperature range (T models)
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60˚C, and an extended operating temperature of -40 to 75˚C. All IMC-101 series are subjected to a 100% burn-in test.
