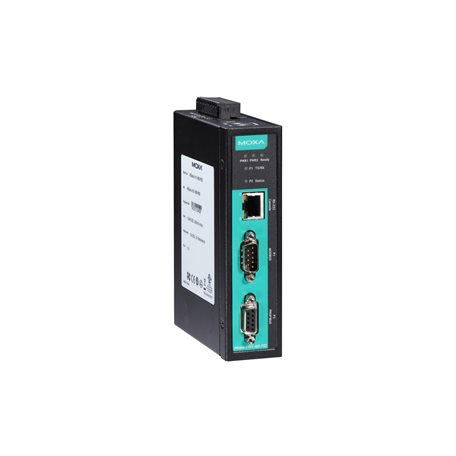

MGate 4101-MB-PBS Series

1-port Modbus RTU/ASCII to PROFIBUS slave gateways

Mgate 4101-mb-pbs



Features and Benefits:

  • Protocol conversion between Modbus and PROFIBUS
  • Windows utilities with innovative QuickLink function for automatic configuration
  • Redundant dual DC power inputs and relay output supported
  • Embedded data packet analyzer
  • Powerful and visual diagnostic tool
  • -40 to 75°C wide operating temperature models available

Certifications

  • moxa-iecex-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxamoxa-ul-listed-certification-logo-image.png | Moxa



DATASHEET DOWNLOAD    GET A QUOTE


Introduction

MGate 4101-MB-PBS series products connect Modbus and PROFIBUS devices to provide PLCs (e.g. Siemens S400 and S300 PLCs) with remote maintenance capability. All models are ruggedly constructed with metal design, are DIN-rail mountable, and offer optional built-in optical isolation for serial signals.

Windows Utilities for Easy Setup and Traffic Monitoring

The QuickLink windows utilities makes configuration and operation of the MGate 4101-MB-PBS as easy as possible. The utility uses a serial console port to connect MGate 4101-MB-PBS unit. The QuickLink function can help you finish configuration in just few minutes by performing automatic commands detection and automatic memory mapping. In addition, an embedded monitoring tool can record all communication packets of Modbus devices and and assist in troubleshooting.

Quick Link

Redundant Power Inputs

The MGate 4101-MB-PBS has dual power inputs for greater reliability. The power inputs allow simultaneous connections to two live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-PROFIBUS gateways ideal for demanding industrial applications.

Warning by Relay Output

A relay output is provided for the power input status. The relay output gives maintenance engineers an additional tool for troubleshooting and maintenance.
