MGATE 5101-PBM-MN SERIES

1-port PROFIBUS-to-Modbus TCP gateways

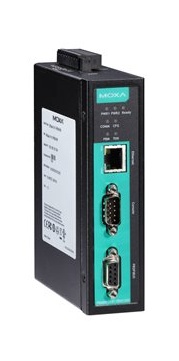

MGate 5101-PBM-MN Series

Features and Benefits:

  • Protocol conversion between PROFIBUS and Modbus TCP Industrial Ethernet Gateway Application Notes
  • Automatic scan of PROFIBUS devices for easy configuration
  • Redundant dual DC power inputs and relay output supported
  • Embedded data packet analyzer and diagnostic tool
  • Web-based GUI for I/O data visualization
  • -40 to 75°C wide operating temperature models available

Certifications

  • moxa-atex-certification-logo-image.png | Moxamoxa-iecex-certification-logo-image.png | Moxamoxa-ul-listed-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD    GET A QUOTE


Introduction

The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation and factory automation.
