Industrial Computing / Marine & Panel Computers / MC-5157-AC/DC

MC-5157-AC/DC

x86 ECDIS computers with Intel® Core™ i5 520E, 4 serial ports, 2 PCI slots, 2 Gigabit Ethernet ports, 6 USB hosts, 8 NMEA ports, storage, VGA/DVI

MC-5157-AC/DC

Introduction

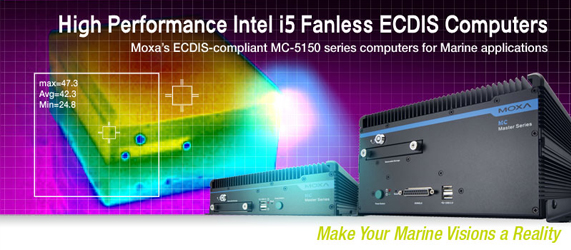

The MC-5157-AC/DC is a high performance, fanless marine computer. The Intel® Core™ i5 520E CPU features a 3 MB L2 cache that can easily satisfy the heavy computing loads demanded by ship-board automation systems. The fanless design further hardens this extremely rugged and reliable computer, designed from the outset for the harsh extremes of maritime environments.

In addition to its computing power and rugged design, 2 PCI slots provide a flexibility that makes hardware extensions simple. The 8 built-in NMEA ports allow marine users to easily connect gyros, speed logs, wind sensors and other specialized maritime hardware without the headache of configuring additional NMEA converters, thereby saving money, time, and maintenance effort.

Mc-5157 ads

DATASHEET DOWNLOAD


Features

  • High performance Intel Core™ i5 520E processor, 3 MB L2 cache
  • Built-in 2 GB DDR3 memory, supports up to 8 GB
  • Dual independent displays (DVI-I + VGA)Download Marine Brochure
  • 2 Gigabit Ethernet ports for network redundancy
  • 2 RS-232/422/485 serial ports
  • 2 RS-232 ports
  • 8 NMEA ports
  • 2 universal PCI slots
  • 6 USB 2.0 hosts
  • 1 internal SATA storage tray for SSD
  • 1 external storage slot for storage expansion
  • 1G anti-vibration for system reliability
  • Fanless design with compact size
  • 24 VDC or 100 to 240 VAC power input models available
  • Supports Windows XP Embedded, Windows XP SP3, Windows 7
