Industrial Wireless Solution/ Wireless Modem/ PLR6130
PLR6130

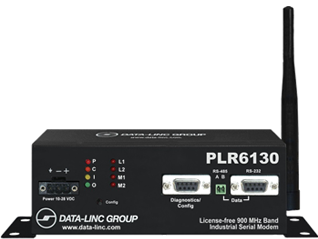

PLR6130 Serial Radio Modem 2.4-2.4835 GHz
Introduction
The PLR6130 is software configurable and has a separate DB9 serial port for independent access to configuration software. Data-Linc’s proprietary SetLincTM software, included with the PLR6130 modems, simplifies modem setup and configuration— executed via the dual serial ports (RS-232 or RS-485). For remote sites, web configuration is also an option.
As with all members of the PLR Family of license-free radio modems, the PLR6130 supports both point-to-point and point-to-multipoint network topologies with a virtually unlimited number of radios. Each modem can be individually configured as Master, Remote, Repeater or Repeater/Remote using the included Config-LincTM software. Additionally, the PLR6130 provides not only superior security through AES-256 encryption but also offers a range of 2 miles (3.2 km) with line-of-sight, farther with Repeaters and/or high gain antennas.
The combination of features and benefits supplied by the PLR6130 serial modem continues to support Data-Linc’s well-earned reputation for superior reliability, versatility and performance for wireless industrial data communication. These competitively priced modems provides the additional advantage of compatibility with the corresponding versions of the long-range radios to support hybrid SRM/PLR applications, offering maximum flexibility in network design both inside and outside the plant.
Features
- 2.4GHz license-free ISM band
- Range of 2 miles (3.2 km)*
- SmartSpectrumTM Technology for maximum data integrity, even in noisy industrial environments
- RS-232/RS-485 data ports
- AES-256 encryption
- Separate RS-232 DB9 configuration port
- Operates as Master, Remote, Repeater and Remote/Repeater
- User adjustable hop patterns and frequency zones for exceptional performance in close proximity networks
- User assignable IP address
- Factory custom-configured for easy, trouble-free installation
