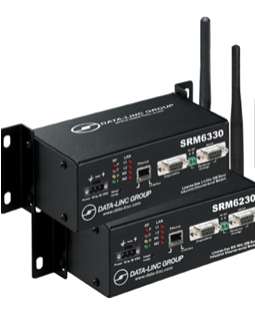

SRM6330 Industrial Wireless Ethernet Radio Modem — 2.4 GHz License-free ISM Band
Introduction
Data-Linc’s license-free SRM6330 Ethernet radio modem offers exceptional reliability, versatility and performance for Ethernet wireless data communications. This latest version offers improved hardware with a faster processor, while maintaining Data-Linc’s commitment to backward compatibility with its corresponding Ethernet legacy SRM6320, SRM6310E and SRM6300E versions.
The SRM6330 is software configurable. Data-Linc’s proprietary SetLincTM software, that is included with the SRM6330 modems, simplifies modem setup and configuration. The 10/100 Auto-MDIX Ethernet ports not only support data transfer but also provide access for the configuration software. Configuration is also available via a separate DB9 serial port. For remote sites, web configuration is also an option. For customer convenience and first-line diagnostics, the front panel includes LED status lights that provide direct access to critical information.
Like its predecessors, the SRM6330 Ethernet radio module employs SmartSpectrumTM FHSS (Frequency Hopping Spread Spectrum) technology. Along with operating in the 2.4 GHz ISM frequency band, customers benefit by the assurance of an ultra reliable, robust, proprietary wireless network with the benefit of exceptional data integrity even in noisy high RFI/EMI environments– including areas with existing wireless infrastructure.
Features
- 2.4 GHz license-free ISM ban
- Range of 16+ km (10+ mi)
- 500mW Output Power (100mW available at lower range)
- SmartSpectrumTM Technology for maximum data integrity, even in noisy environments
- 10/100 Auto-MDIX Ethernet port
- AES 256 encryption
- RS-232 DB9 configuration port
- Configurable as Master, Remote, Repeater and remote/Repeater
- User adjustable hop patterns and frequency zones for exceptional performance in close proximity networks
- Replaces any legacy Ethernet SRM series radio modem
- User assignable IP address
- Factory custom-configured for easy, trouble-free installation
- Optional DIN rail mounting
