Serial-to-Ethernet Device Servers

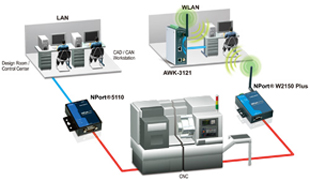

Moxa's serial-to-Ethernet products are specifically designed to allow industrial devices to be directly accessible from the network. Legacy devices can thus be transformed into Ethernet devices, which can be monitored and controlled from any network location or even the Internet. Different configurations and features are available for specific applications, such as protocol conversion, Real COM drivers, and TCP operation modes to name a few. Moxa’s NPort® line of device servers are essentially pre-programmed computers that have a real-time OS and built-in TCP/IP protocol suite that allows you to access, manage, and configure remote facilities and equipment from anywhere in the world over the Internet.

No Restrictions on Host Type or Operating System
Any host computer that supports the TCP/IP protocol can access the NPort®’s serial ports, eliminating the need for special-purpose drivers. In addition, you will not be held back by your PC’s limited number of serial bus slots.

Real COM/TTY Drivers for Existing Software
NPort® device servers also come with Real COM/TTY drivers for accessing devices through a “virtual” COM or TTY port.

 NPort® Provides a Wide Choice of Operation Modes

•  Socket Modes: TCP Server Mode, TCP Client Mode, UDP Mode •  Driver Modes: Real COM Mode, RFC2217 Mode •  Other Modes: Pair Connection Mode, Ethernet Modem Mode, Reverse Telnet Mode

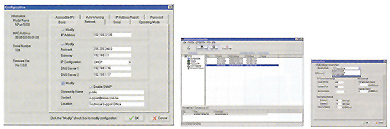

 NPort® Administrator Makes Installation Easy

NPort® Administrator is designed to make it easy to install and configure NPort® 5000 device servers over the network. Five groups of functions are supported to allow off-line COM mapping, device monitoring, and searching for NPort® device severs over the network. Both NPort® Administrator and an IP Serial Library are bundled with NPort®’s integrated software suite, giving you everything you need to manage, monitor, and reconfigure your NPort® from remote locations.

Configuration Features :

• Broadcast search over the LAN for NPort® device servers
•  Select and configure the NPort®’s operation mode
•  Upgrade the NPort®’s firmware
•  Export and import the NPort®’s configurations
•  Monitor the NPort®’s status
•  Auto IP report

 Web Console Provides Exceptional Convenience

NPort® 5000 device servers are easily configured over the network with the web console or Telnet console.
