Unmanaged Simplicity Meets Unmatched Reliability

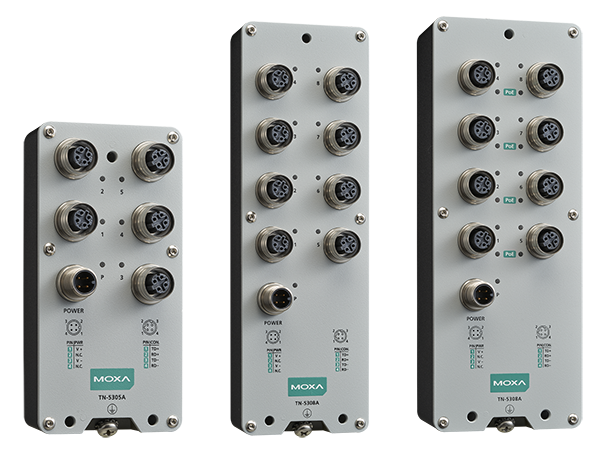

With M12 connectors for robust connections, the TN-5300A Series unmanaged Ethernet switches provide optimal protection in tough environmental conditions. Featuring 5 to 8 Fast Ethernet M12 push-pull ports, an isolated power input range of 24 to 110 VDC, robust die-cast housing, and a -40 to 70°C wide operating temperature range, the TN-5300A Series offers a versatile and reliable solution for industrial Ethernet networks. This switch series also includes PoE options, capable of providing up to 30 W per port with a total PoE budget of 50.2 W.
For Critical Applications
M12 Push-pull Connectors
24 to 110 VDC Wide Power Input Range
Compact Size with Wide Power Input Range
IP54-rated Robust Die-cast Housing
(IP67 Also Available)
For Harsh Environments
The TN-5300A Series complies with the mandatory parts of the EN 50155 standard, including temperature, power input, surge, ESD, and vibration. These switches are suitable for rolling stock and a variety of other industrial applications, such as factory robots, AGVs, and mining or marine network expansion.
