The Industry's Most Complete Portfolio of Onboard CCTV Solutions

Modern onboard CCTV video surveillance systems rely mainly on IP-based
technologies to provide direct access to the information necessary for supervising and adjusting rail operations during transit. These systems support live viewing and data recording both on the train itself and remotely at Operations Control Centers (OCCs). To make this possible, robust network infrastructure for onboard and trainto-ground communications is essential. To help system integrators build these systems in less time and reduce operational maintenance efforts, Moxa offers the industry’s most complete portfolio of onboard CCTV systems. Our selection covers all elements ranging from diverse IP cameras and versatile computers, to highspeed
wired and wireless networking solutions. With Moxa, customers can enjoy the benefits of having a single source vendor, meaning fewer product compliance issues and access to immediate technical support if anything goes wrong.

Essential Trends for Onboard CCTV Infrastructure
  • Integrate multiple onboard systems onto one IP train network
  • Gigabit and PoE connectivity
  • Real-time video streaming to the control center
  • Optimize network and video performance
  • More services with less equipment in confined onboard spaces

Resilient Equipment Design

As onboard train systems operate in tough conditions over long stretches of time, they must be sufficiently resilient and rugged to endure high humidity, fluctuating temperatures, constant vibration, while also being able to fit in confined spaces with wiring restrictions. That’s why all Moxa onboard products are specifically designed to strictly adhere to the rigorous EN 50155 standard, ensuring stable operation in harsh environments and on trains moving at high speed.


Onboard CCTV/PIS Reference Architecture


Moxa Delivers Complete Solutions

Moxa provides all onboard video surveillance elements you need. Our IP cameras are available in various form factors with multiple mounting options for installation in different environments. Computing platforms include NVR computers for onboard video recording, panel computers for live stream display in the driver cab, and Multi-WWAN computers for train-to-ground communications. Video streaming is a major component of IP surveillance systems. Moxa offers a comprehensive range of network devices, including Layer 2 and Layer 3 onboard switches, as well as Wi-Fi and cellular products to help customers build a high-speed network architecture for live streaming and recording high-definition video.

1. Versatile Onboard IP Cameras

  • Mounting: Ceiling, panel, flush, or vertical mounting
  • Lenses: Optional fixed focal length lenses (2.4, 2.8, 3.6, 4.2, 6, 8 mm) for different viewing angles and distances
  • Form Factors: Metal or plastic housing with vandal, rain, dust protection

2. Ruggedized Computing Platforms

  • Multi-purpose NVRs: Driver car NVR, passenger car NVR, or gateway applications
  • Train operator display (TOD) panel computers
  • Multi-WWAN Computers

3. Complete Networking Solutions

  • Onboard router/L2 Ethernet switches
  • High-density 10GbE, GbE, PoE, and bypass connectivity
  • Wireless carriage-to-carriage links
  • Train-to-ground via Wi-Fi or cellular

1. EN 50155 IP Cameras for Any Situation

Nowadays, more and more onboard cameras are being deployed to monitor critical areas across the train. In addition, onboard CCTV systems face a unique set of challenges, such as limited installation space, extreme shock and vibration, and varying lighting conditions. As the world’s number one supplier of onboard cameras, Moxa delivers IP video technology, capable of achieving greater video coverage, excellent HD image quality, and optimal bandwidth and storage usage.

Solution Highlights

  • Wide choice of cameras and lens types for various onboard scenarios
  • Advanced imaging technologies for a crystal-clear image in any lighting condition
  • PoE-powered to reduce cabling
  • Compliant with the EN 50155 OT4 temperature criteria (-40 to 70°C)
  • Vibration, humidity, dust, and vandal-resistant design

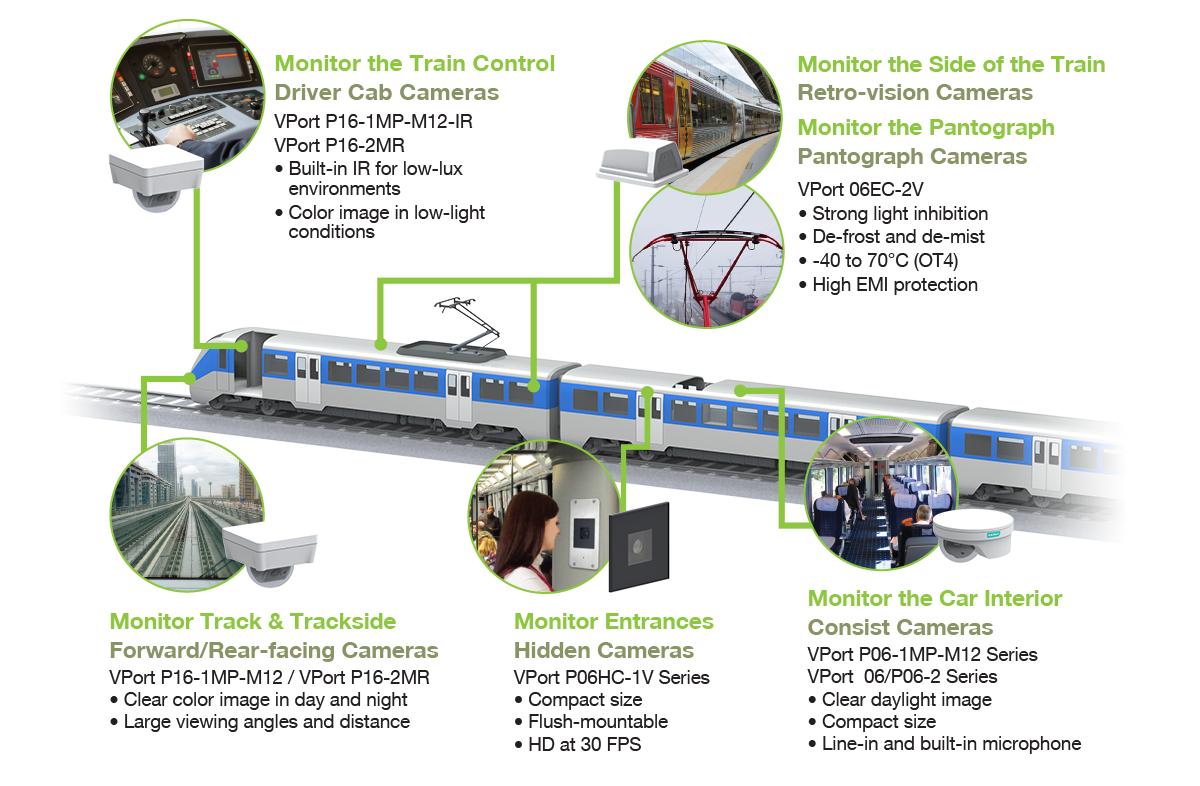

Find the Exact Fit for Your Application

Whatever you are looking for, you will find a Moxa IP camera that suits your needs. Front and rear-facing cameras provide the driver with real-time vision of the track and trackside, consist cameras monitor the passenger carriage interior, and driver cab cameras capture the driver’s actions instantly. Hidden type HD cameras are ideal for keeping an eye on train entrances. Moxa also offers customized hardware and form factors to meet special installation requirements.

Instant Adjustment to Variable Lighting Conditions

The train’s onboard lighting fluctuates dramatically during its journey, especially when speeding into and out of tunnels. Instantaneous adjustment to rapid lighting changes is crucial to providing consistent, clear image quality. Moxa’s IP cameras capture crisp, full-motion video in HD and 1080P, and support advanced imaging technologies such as WDR, DNR, and BLC for optimal image quality in any environment. Our large selection of lens types for different viewing angles and ranges ensures the right field of view in any situation.

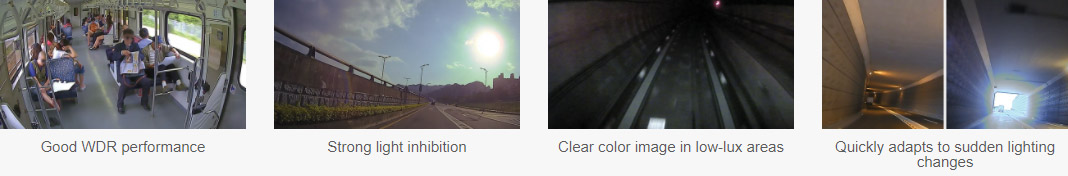

Advanced Imaging Technologies

Optimize Network and CCTV Performance

Effective IP surveillance relies on video streaming, which significantly influences network and video performance. Moxa’s IP cameras use custom IP video technologies, such as CBR Pro™ and DynaStream™ to optimize bandwidth and storage use while maintaining consistent video performance.


2. Compliant With EN 50155 Anti-vibration Standards

Moxa designed its onboard computers specifically to transmit video streams and data from the NVRs to the OCC via wireless networks for real-time monitoring. Our NVR computers enable uninterrupted concurrent video recording from multiple streams. As installation space in the driver cab is very limited, our fanless, compact panel computers can serve as a common display for both PIS and CCTV. Moxa’s Multi-WWAN computers support both cellular and Wi-Fi connection options for streaming live CCTV data to the control center. All Moxa onboard computers are fully compliant with the EN 50155 anti-shock and anti-vibration criteria to ensure reliable operation when the train is on the move.

Solution Highlights

  • NVR computers feature a hot-swappable HD module for easy maintenance and minimal system downtime
  • Panel computers meet the 70°C heat tolerance demanded by EN 50155 OT4
  • Panel computers with a multi-touch LCD screen that is readable under direct sunlight

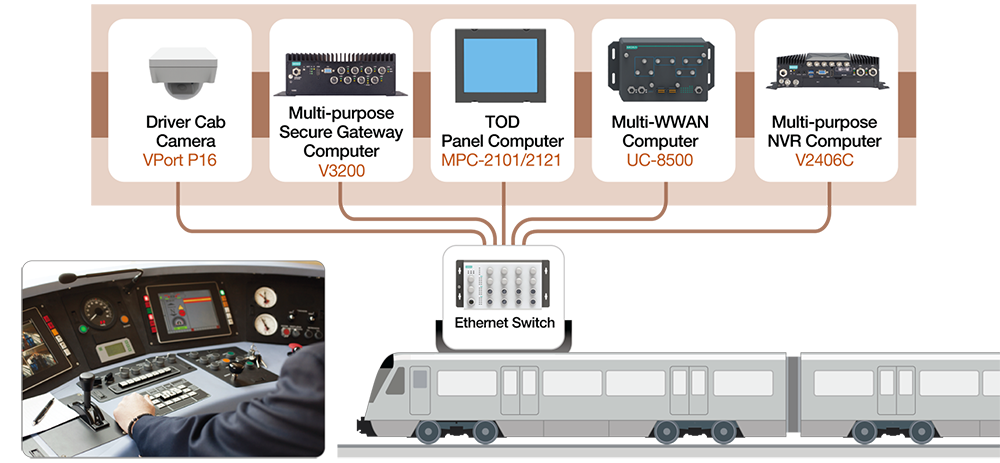

Live Viewing and Recording on the Train and at the Remote OCC


3. Evolving Demands for Ethernet Trains

As trains become more complex, the number of onboard systems and devices, such as CCTV, PIS, and other passenger-oriented systems, increases. Efficient operation requires integrating all these intelligent onboard devices onto a single Ethernet network. CCTV systems, specifically, process several high-definition video streams and connect to multiple bandwidth-intensive end devices, such as NVRs and wireless access points. This requires a robust network backbone that supports high data transfer rates. In addition, the demand for PoE capability to supply onboard devices like IP cameras is surging. Moxa’s lineup of wired and wireless networking solutions for high-speed onboard and train-to-ground communications is designed to meet these growing trends.

Solution Highlights

  • Merge multiple subsystems onto a single integrated network
  • High bandwidth (FE/GE/10G/802.11n) for multiple concurrent video streams
  • PoE capability to save on cabling efforts and costs
  • Flexible and easy network reconfiguration for operational efficiency

Versatile Onboard Ethernet Networks

While every onboard subsystem performs its own set of tasks, it needs to be interconnected with other systems through the backbone network. A reliable Ethernet Train Backbone (ETB) network, which connects the Ethernet Consist Networks (ECN), is critical for integrating onboard systems. Usually, the onboard CCTV system is built on the ECN so that live video can be streamed to the driver cab and recorded via the IP network. This data then transfers to the remote OCC via a Wi-Fi or cellular connection. Moxa provides a complete line of onboard switches perfect for creating a reliable, intelligent Ethernet train network.

Simplify Installation and Maintenance With Flexible Networks

Moxa’s onboard switch solutions simplify network design, installation, and maintenance. Mid-journey, train consists are frequently reconfigured. In a standard redundancy design, the ring coupling has to be reconfigured every time a new consist is coupled to the train. Moxa’s Dynamic Ring Coupling™ (DRC) technology enables inter-consist Ethernet redundancy without disrupting intra-consist networks during reorientation. As a result, all the Ethernet-based services, such as CCTV, Wi-Fi access, and PIS, continue to operate seamlessly even when coupling switches are rearranged mid-journey. For retrofitted trains, Moxa’s Auto Carriage Connection (ACC) technology creates wireless inter-car links and reduces cabling and wiring complexity on the train. Furthermore, Moxa’s switches support Auto Configuration, which configures IP settings for all network devices automatically, saving significant effort, especially for mass device deployments.

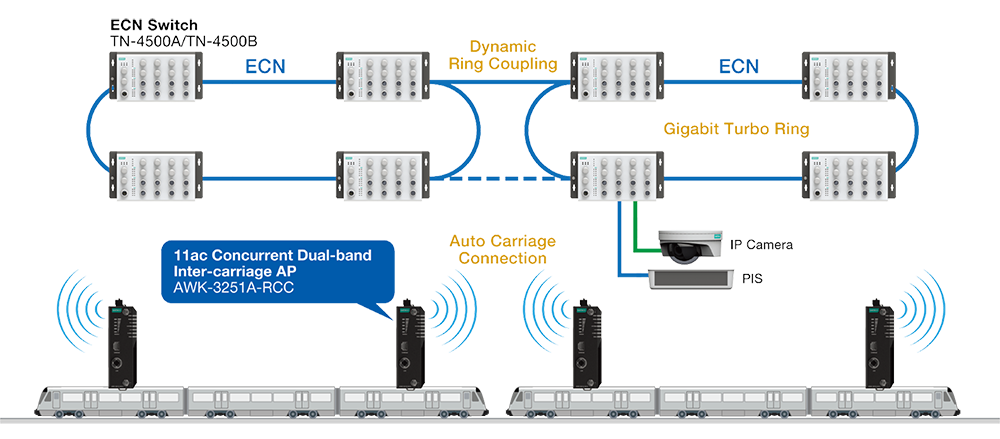

Flexible and Intelligent Network Reconfigurations

DRC

An intelligent inter-consist Ethernet redundancy technology that uses auto-configuration when consists are re-arranged.

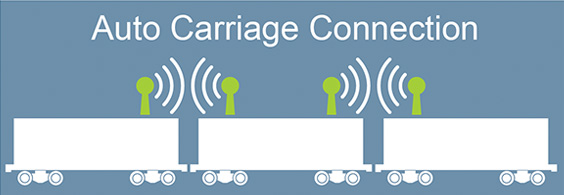

ACC

Automatically create wireless links between train cars to adapt to dynamic train re-composition during operation

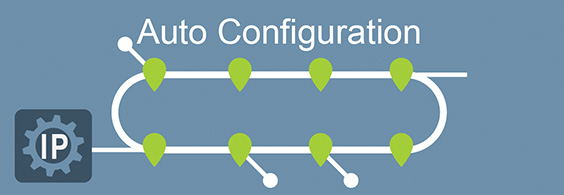

Auto Configuration

Assign IP addresses to all network devices automatically to simplify installation and maintenance.

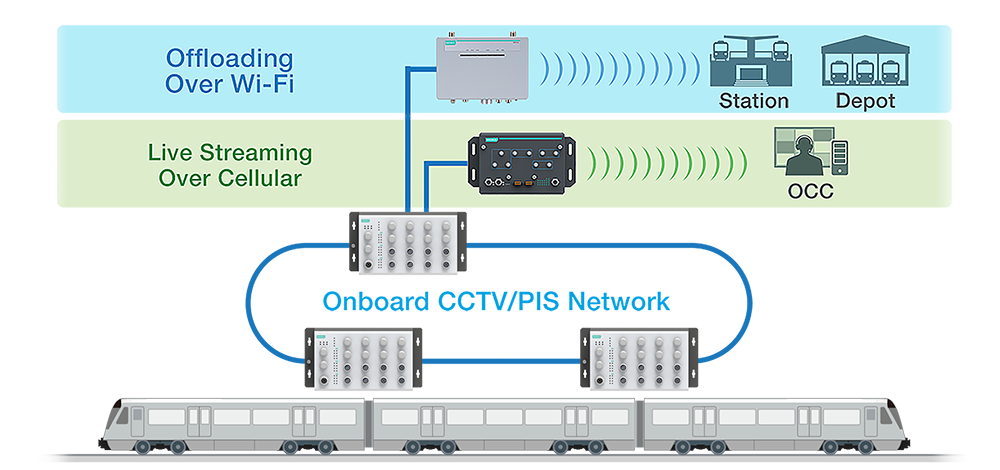

Flexible Train-to-ground Communications

Cellular and Wi-Fi networks are becoming the preferred train-to-ground (T2G) communication method. Rail operators may consider adopting LTE and Wi-Fi hybrid solutions for handling T2G communication in different scenarios. When on the move, the train uses cellular connections for seamlessly switching between regional carrier services to ensure uninterrupted video streams. When the train enters the station or returns to the depot, it offloads all recorded data over Wi-Fi, saving on carrier service charges. Moxa provides Wi-Fi and cellular options to cover all scenarios.


Recommended Products

IP Cameras



Onboard consist IP cameras with clear daylight images, HD and 1080P
video quality, compact size, and audio or microphone input

VPort 07-3 Series

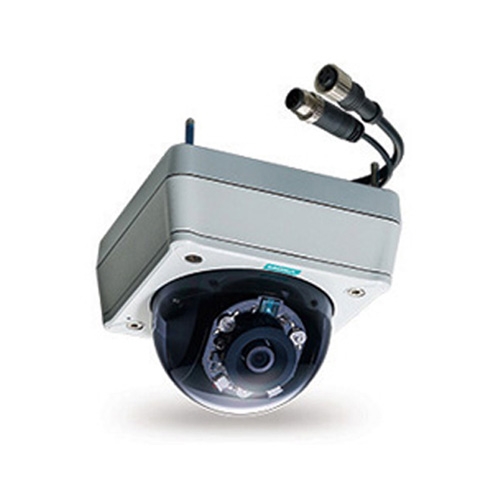

Forward/rear-facing driver cab cameras with built-in IR for low-lux environments and solid image

VPort P16-2MR Series

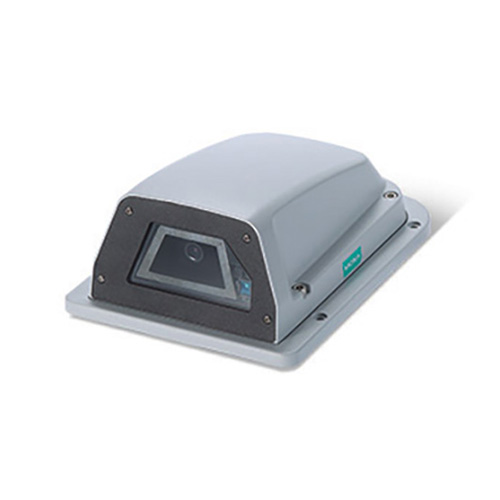

EN 50155, 1080p resolution, day and night outdoor IP cameras

VPort 06EC-2V Series

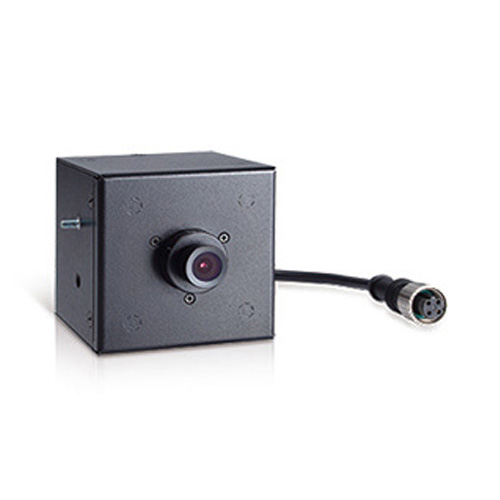

EN 50155, HD, cubic IP cameras

VPort P06-HC-IV Series


Computing Platforms

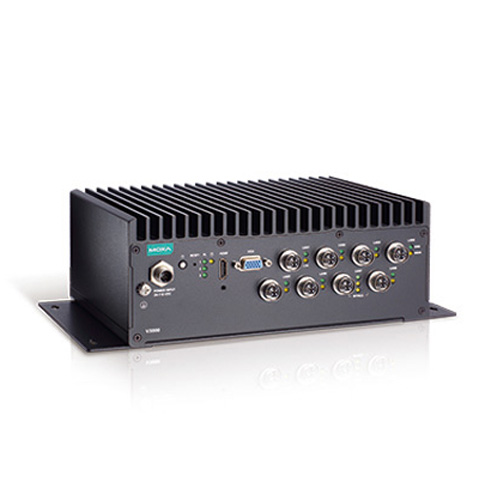

11th Gen Intel® Core™ processor railway computers with power isolation, multiple expansion slots for wireless, 2 SSD slots

V3200 Series




Intel® 7th Gen Core™ CPU railway NVR computers with power isolation, 2 mini PCIe expansion slots for wireless, and 2 hot-swappable HDD/SSD slots

V2406C Series

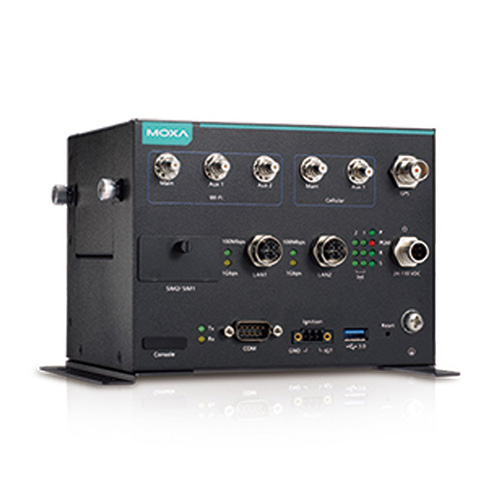

Arm Cortex-A7 dual-core 1 GHz train-to-ground computers with 2 Mini PCIe expansion slots for wireless modules

UC-8540 Series



10-inch/12-inch industrial fanless panel computers with 500-nit or sunlight-readable 1000-nit LED backlight

MPC-2101/2121 Series


Onboard Ethernet Networks



EN 50155 Gigabit security routers

TN-4900 Series

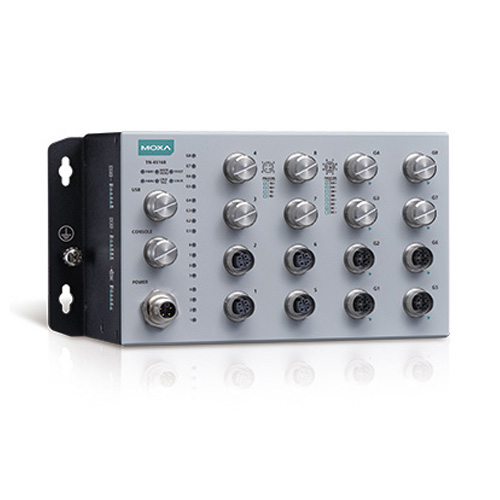

EN 50155 8 to 28 ports Ethernet managed switches

TN-4500B Series


Full Gigabit Ethernet switches with up to 8 PoE ports

TN-G6500 Series

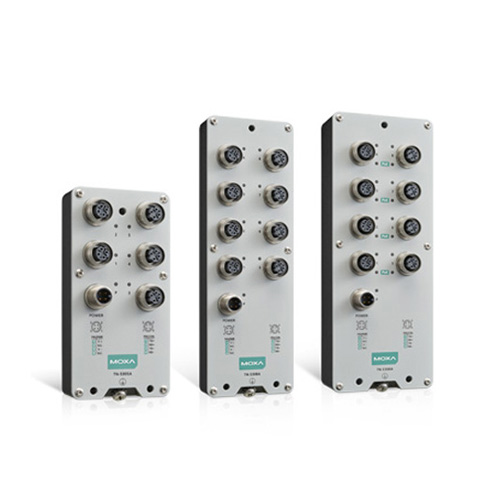

EN 50155 5/8-port unmanaged Ethernet switches

TN-5300A Series


Train-to-ground Communications



IP68-rated single-radio 802.11n AP/clients with M12 connectors, -40 to
75°C wide operating temperature, and conformal coating

TAP-213 Series

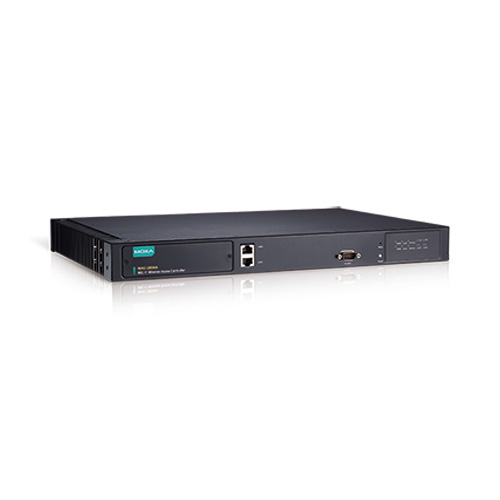

Industrial wireless access controllers

WAC-2004A Series


Your Reliable Solutions Partner of Today and Tomorrow

Establishing real-time video surveillance onboard trains is one of the most challenging tasks of railway applications. With over decades of industry experience and a rock-solid record all over the world, Moxa’s extensive product portfolio covers every component for building complete onboard CCTV systems. Our experts actively contribute in IEC working groups to help formulate industry-wide onboard standards. Our broad portfolio combined with domain expertise and industry involvement make Moxa the best solutions partner to help you overcome the challenges of today and tomorrow.
