EDS-408A-3S-SC-48 Series

Industrial Ethernet / Din-Rail Managed Ethernet Switches / EDS-408A-3S-SC-48 Series

8-port entry-level managed Ethernet switches with ±24 and ±48 VDC power inputs

Features and Benefits:

IPv6 Ready logo awarded (IPv6 Logo Committee certified)
DHCP Option 82 for IP address assignment with different policies
Modbus/TCP industrial Ethernet protocol supported
Turbo Ring and Turbo Chain (recovery time < 20 ms at full load), and RSTP/STP (IEEE 802.1w/D)
IGMP snooping and GMRP for filtering multicast
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for efficient network monitoring and proactive capability
SNMPv1/v2c/v3 for different levels of network management security
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging

Certificates

Introduction

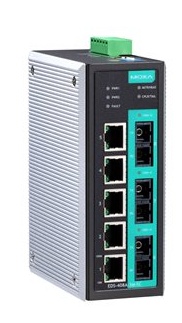

The EDS-408A-3S-SC-48 are 8-port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A-3S-SC-48 switches.

PRODUCT OUTLINE
