Industrial Ethernet / Din-Rail Managed Ethernet Switches / CM-600-4TX-PTP

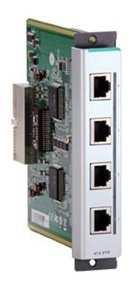

CM-600-4TX-PTP
4-port fast Ethernet interface modules for EDS-600 series Ethernet switches
Features and Benefits
-
- Modular design with 4-port copper/fiber combinations
- Hot-swappable media modules for continuous operation
Certifications
Introduction
The CM-600-4TX-PTP module adds precision time protocol support to the EDS-600 for time-critical industrial environments. This module for the EDS-600 series switches has 4 fast Ethernet ports and support for IEEE 1588v2, which reduces the message delay between devices to nanoseconds.
Compared to traditional devices that rely on GPS for time synchronization, the IEEE 1588 V2-compliant
CM-600-4TX-PTP switch module is a cost-effective solution that synchronizes your devices over an Ethernet
network with minimal extra effort thanks to Moxa’s user-friendly web configuration , which lets you quickly
configure the IEEE 1588 parameters to fit your IEEE 1588 network system.
