Building Reliable Networks for a Crane OCR System With High-Power PoE

Application Crane Optical Character Recognition (OCR) Systems
Industry Marine
Region USA

Introduction

A global port operator selected Moxa’s PoE switches to provide highly reliable data transmissions for their crane optical character recognition (OCR) system. The crane OCR system is used to track and monitor the loading and unloading of freight containers at port terminals. As the key to automating the cargo handling process, the reliable OCR system improves the efficiency of moving containers from ship to shore and reduces occupational hazards for personnel. In order to realize these benefits, the port system integrator had to overcome critical challenges to building a reliable crane OCR system. These challenges include deploying wiring in an environment with many obstacles, providing power supply for a variety of high-resolution outdoor cameras, ensuring reliable data transmissions, and reducing maintenance efforts.

System Requirements

  • Power over Ethernet (PoE) switches to overcome the obstacles that occur when deploying multiple wires
  • Power output of 60 W per port to equip high-resolution cameras for accurate container recognition, including PTZ cameras
  • Robust switches that can withstand outdoor environments and high-salinity sea air
  • High-reliability networks to ensure real-time image data processing and transmission
  • Easy-to-use network management software for operators to remotely visualize and administer the crane OCR system network effectively

Moxa Solution

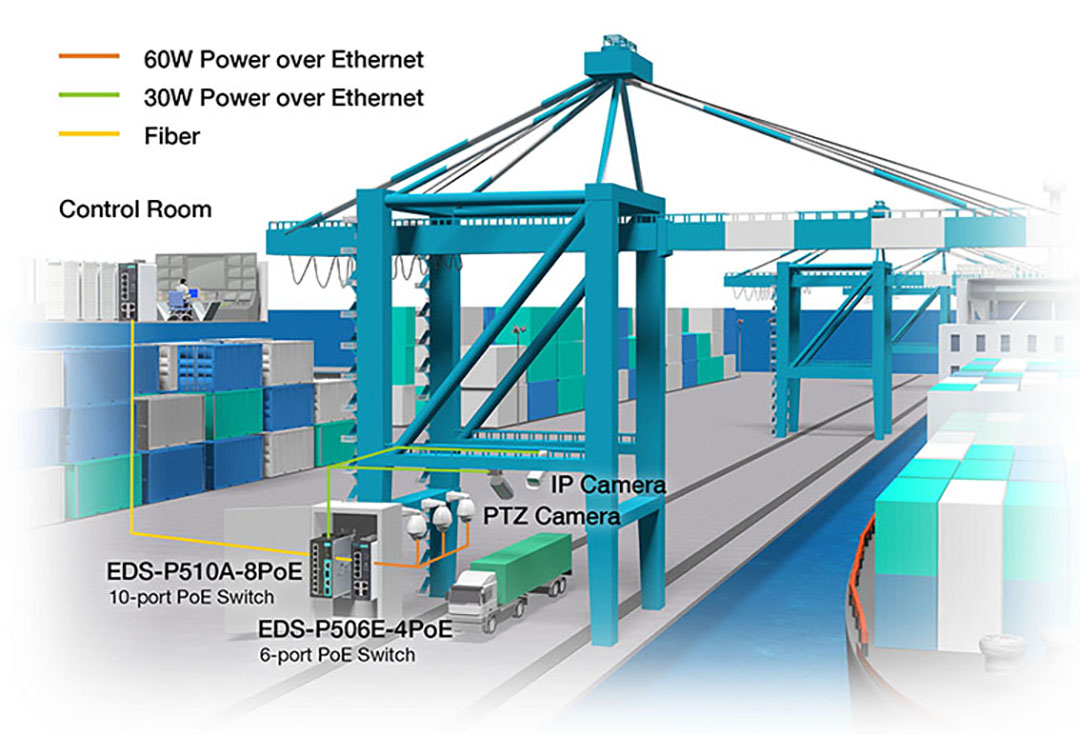

To automate the container checking process, the crane OCR system is equipped with multiple cameras to capture images of all passing containers, including each container’s serial number, from different angles. Some of these cameras are high-resolution PTZ cameras that have above-standard requirements, such as power input of 60 W per port. Moxa provided a complete portfolio of switches to satisfy all camera requirements. Solutions included the EDS-P506E-4PoE managed switch, which provides high power output of up to 60 W per port. If the demand for power is not high, there are other cost-efficient options such as the EDS-P510A-8PoE, which is a managed switch with 8 PoE ports. The managed switches provide high MTBF and protect against extreme environments where outdoor crane systems are often used. Moreover, Moxa PoE managed switches include a built-in “Smart PoE” feature to support remote powered device (PD) management, including PD status monitoring, remote PoE port power cycling, and PoE port power cycle scheduling. These switches not only satisfy all of the system requirements, but also enable smooth operation and reduce overall maintenance costs.

Moreover, reliable data transmission is necessary for sending real-time images back to the port terminal’s remote control center for further identification and analysis. Moxa’s redundancy technologies, Turbo Ring and Turbo Chain, are specially designed to protect networks against transmission failures. Turbo Ring and Turbo Chain both support millisecond-level fast recovery to ensure that there are no interruptions to image data transmissions. However, there are certain situations when redundancy technologies alone do not suffice. For example, a device could malfunction or lose cable communications.

By using Moxa’s easy-to-use MXview or MXview ToGo graphical network management software, system administrators can remotely and effectively visualize the crane OCR system network to gain immediate insights and take the necessary steps to resolve network problems.

Why Moxa

  • Moxa provided a complete PoE switch portfolio to satisfy all camera requirements
  • Support for up to four 60 W PoE ports with a 180 W power budget for multiple cameras
  • Moxa’s PoE switches provide high EMI/surge protection and a -40 to 75°C operating temperature range, which makes the switches suitable for harsh outdoor environments
  • Supports automatic PD failure detection and device rebooting for network recovery without manual inspection or maintenance
  • Moxa redundancy technologies, Turbo Ring and Turbo Chain, ensure reliable data transmission
  • Moxa MXview and MXview ToGo network management software enables remote visualization of crane OCR system status anytime, anywhere

Products Used:

EDS-P510A Series

8+2G-port Gigabit PoE+ managed Ethernet switches with 8 IEEE 802.3af/at PoE+ ports

EDS-P506E Series

4+2G-port Gigabit PoE+ managed Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
