Industrial Ethernet / Din-Rail Managed Ethernet Switches / EDS-510E Series

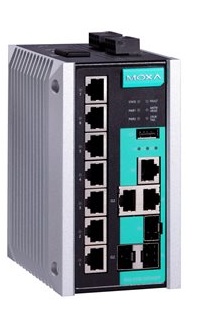

EDS-510E Series

7+3G-port Gigabit managed Ethernet switches

Features and Benefits:

  • 2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
  • Command Line Interface (CLI) for quickly configuring major managed functions
  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
  • DHCP Option 82 for IP address assignment with different policies
  • Support EtherNet/IP, PROFINET, and Modbus/TCP protocols for device management and monitoring
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for efficient network monitoring and proactive capability
  • Bandwidth management prevents unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through e-mail, relay output
  • Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02 automatic backup configurator.

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxamoxa-atex-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa



DATASHEET DOWNLOAD   GET A QUOTE


Introductions

The EDS-510E Gigabit Ethernet switch is designed to meet rigorous mission critical applications, such as factory , ITS and process control. The 3 Gigabit Ethernet ports allows great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The managed switch adopts USB interfaces for switch configuration, system file backup, and firmware upgrade, making it easier to manage.
