EOM-104 Series

4-port embedded managed Ethernet switch modules

EOM-104 Series

Features and Benefits:

  • 10/100BaseT(X) and 100BaseFX Ethernet interfaces
  • Turbo Ring, RSTP/STP for Ethernet Redundancy
  • SNMP and e-mail alerts for event trapping and notification
  • Two-thirds the size of a business card
  • Low power consumption
  • -40 to 75°C operating temperature range

Certifications

  • moxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The EOM-104 series Ethernet switch modules are designed for device manufacturers who would like to embed an Ethernet switch module in their products to enhance performance and reliability. The EOM-104 series modules provide an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product. The modules support 10/100M Ethernet transmission and comes with Turbo Ring's fast recovery time of under 20 ms. The EOM-104 series also provide a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.


Evaluation Kits

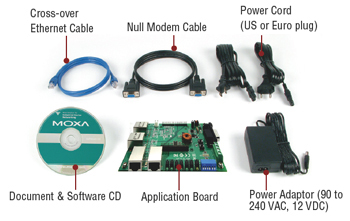

The EOM Evaluation Kit includes an evaluation board, power adaptor, software CD, and serial and Ethernet cables to allow quick and easy evaluation of all embedded Ethernet switch functions. The evaluation board is equipped with Ethernet ports, console port, and Turbo Ring DIP switch to help you test your modules and applications.
