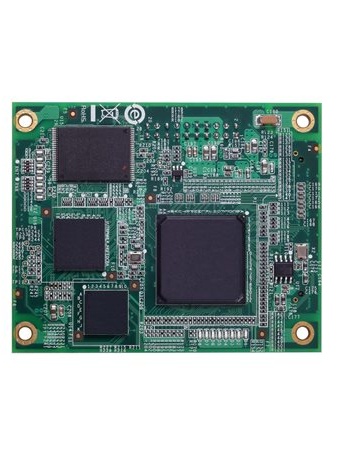

EOM-G103-PHR-PTP Series
IEC 62439-3 3-port full Gigabit embedded managed redundancy modules
-337x456.jpg)
Features and Benefits:
- IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
- 3 SGMII pinouts reserved for PRP/HSR (LAN A/LAN B/Inter Link) and an extra 1 SGMII reserved for Ethernet console connection
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The EOM-G103-PHR-PTP series full Gigabit managed redundancy modules are designed for device manufacturers who would like to embed and integrate the advanced IEC 62439-3 supported modules with minimum effort into their products to enhance performance and reliability of certain mission-critical applications.
IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) are the newest standardized redundancy protocols for industrial automation networks where zero recovery time is needed. PRP and HSR are suitable for electrical substation automation and other mission-critical applications that cannot tolerate any system downtime.
The EOM-G103-PHR-PTP series modules are compliant with the latest IEC 62439-3 standards and provide an easy and cost-effective integrated solution for adding a redundancy module to a non-IEC 62439-3 supported product. The modules support two IEC 62439-3 Ethernet ports (SGMII (MAC mode) / SERDES (1000Base-X) interface) for constructing PRP or HSR networks and one standard Ethernet port (SGMII (MAC mode) / SERDES (1000Base-X) interface) for connecting with standard IEEE 802.3 Ethernet devices. The EOM-G103-PHRPTP series also provide an extra SGMII (MAC mode) / SERDES (1000Base-X) interface for building up a local access Ethernet console port to easily maintain, control, and manage certain devices right at the local site.
