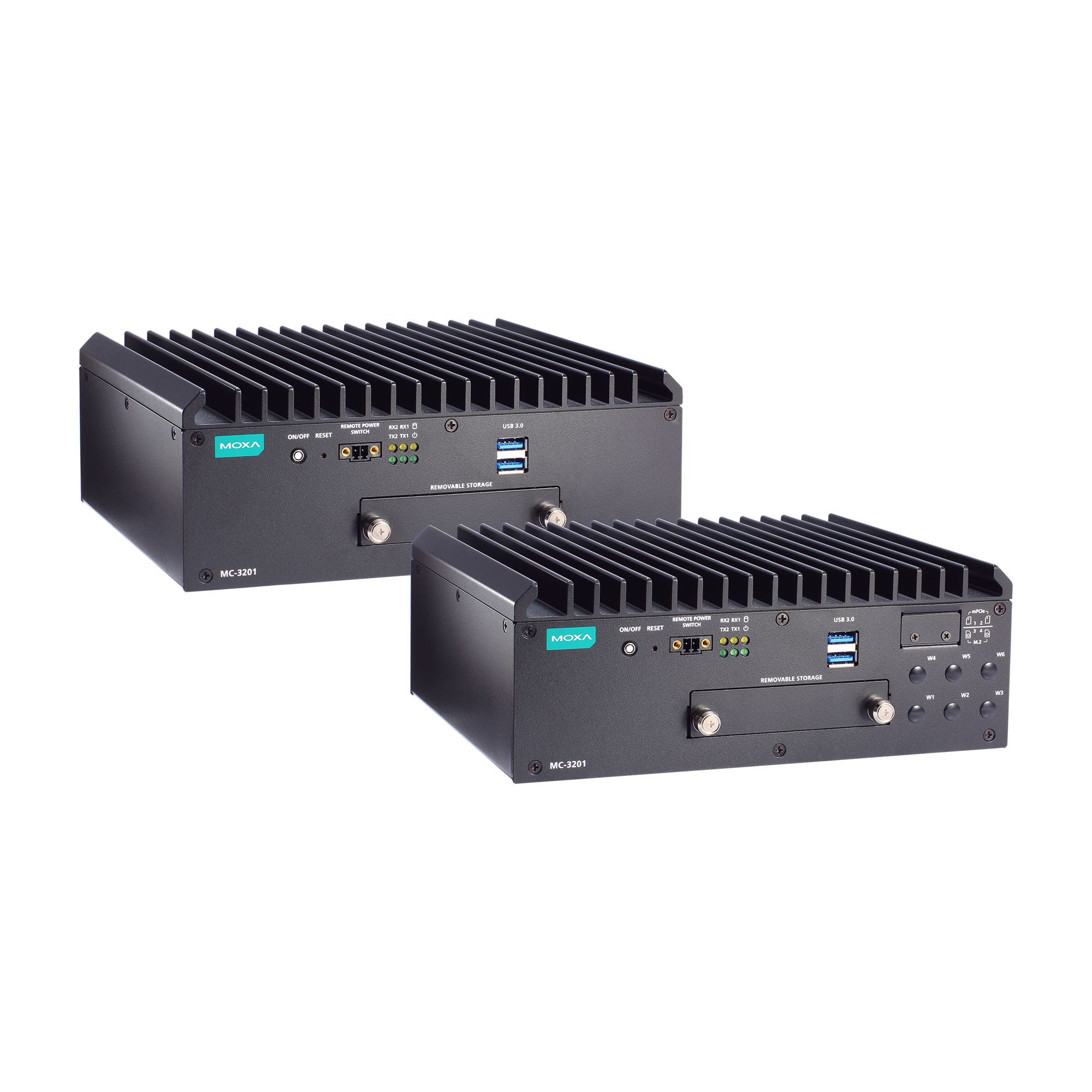

MC-3201 Series

Compact computers with 11th Gen Intel® Core™ processor, designed for IIoT, AI, and marine applications

Features and Benefits

  •  11th Gen Intel® Core™ processor (Tiger Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • M.2 B key socket for 5G, GPS, and M.2 SATA SSD expansion modules
  • M.2 E key socket for Wi-Fi and BT expansion modules
  • Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A)
    ports, and 4 USB 2.0 (type A) ports
  • Built-in TPM 2.0 module
  • Complies with IEC-60945 and IACS E10 standards

Certificates

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort
interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot
and a built-in TPM 2.0 module.

Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion.
Users have the option to add a variety of different communications modules, including Wi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion
modules.

Compliance with the IEC-60945 and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT
applications. These certifications are issued to indicate the suitability of product for use in marine applications.
