Industrial Computing / Marine & Panel Computers / MD-226 Series

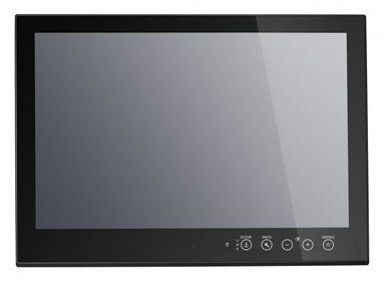

MD-226 Series

26-inch wide screen marine display, 16:10 aspect ratio, full HD 1920 x 1200 resolution

MD-226 Series

Overview

The MD-226 series of marine displays comes with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall
time-to-market.

The innovative and user-friendly SavvyTouch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on hardware status, and a quickswitch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-226 series displays are compliant with IEC 60945, DNV, and IACS-E10, verifying their resilience and durability in maritime conditions. Their IP54 rated enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.

ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

DATASHEET DOWNLOAD


Features and Benefits

  • 26-inch Full-HD display, 16:10 aspect ratio
  • High quality LCD with LED backlight
  • Color calibrated for ECDIS compliance
  • Full range dimming, 0 to 100%
  • SavvyTouch™ display controls
  • Built-in RS-232/422/485 interfaces
  • Dual power supplies (AC & DC)
  • IP54 (front) / IP22 (rear) rated
  • Optical bonding available on request

Click here for more information on Industrial Panel Computers and Displays designed to meet mission-critical challenges.
