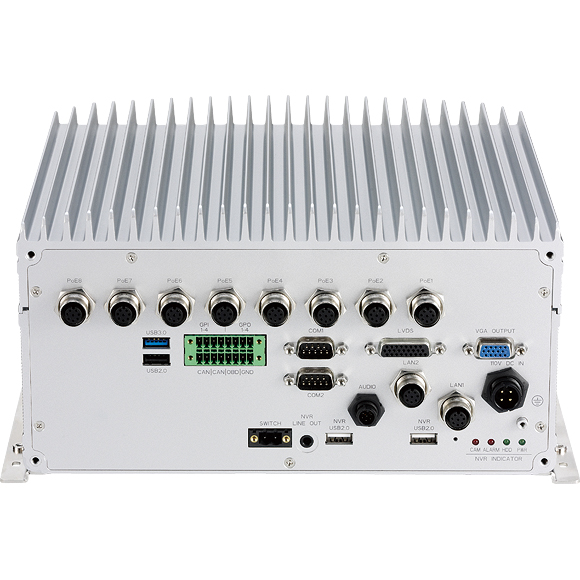

MVS 5210-R
8-CH PoE Premium Railway Mobile NVR
MVS 5210-R performs 8-CH live view when keeping recording the video simultaneously without lags. It provides multitasking capability such as running video analytics software like people counting continuously while recording real-time videos.
MVS 5210-R mobile network video recorder promotes increased safety and security for railway passenger transportation with high video frame rates and 2 removable extensive storage HDD/SSD capacity. It connects up to 8 IP cameras + PoE function providing reliable and high quality video coverage around the train. Railway information stamp such as location, speed or other critical data can be recorded and shown in video.
MVS 5200-R leverages wireless networks to simplify railway management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock. EMC and environment test in EN50155 secure MVS 5210-R can operate in daily railway environments.
For added physical security, the pre-alarm function on MVS 5210-R features 2 x DI, 2 x DO and GNSS that can operate in power-off state, ensuring railway location, alarm and emergency notifications are constantly available at times of intrusion or urgent conditions. Optional back-up battery guards against any unexpected power shutdown or unstable power.
Features and Benefits:
- Multitasking PC+NVR
- Train information stamp in video
- 8 x M12 10/100/1000 Mbps 802.3af PoE ports
- VMS software installed
- 5th generation Intel® Core™ dual core i7-5650U, 2.2GHz
- Dual removable SATA 3.0 SSD/HDD
- EN50155 Class TX conformity
- 24VDC and 110VDC power input
