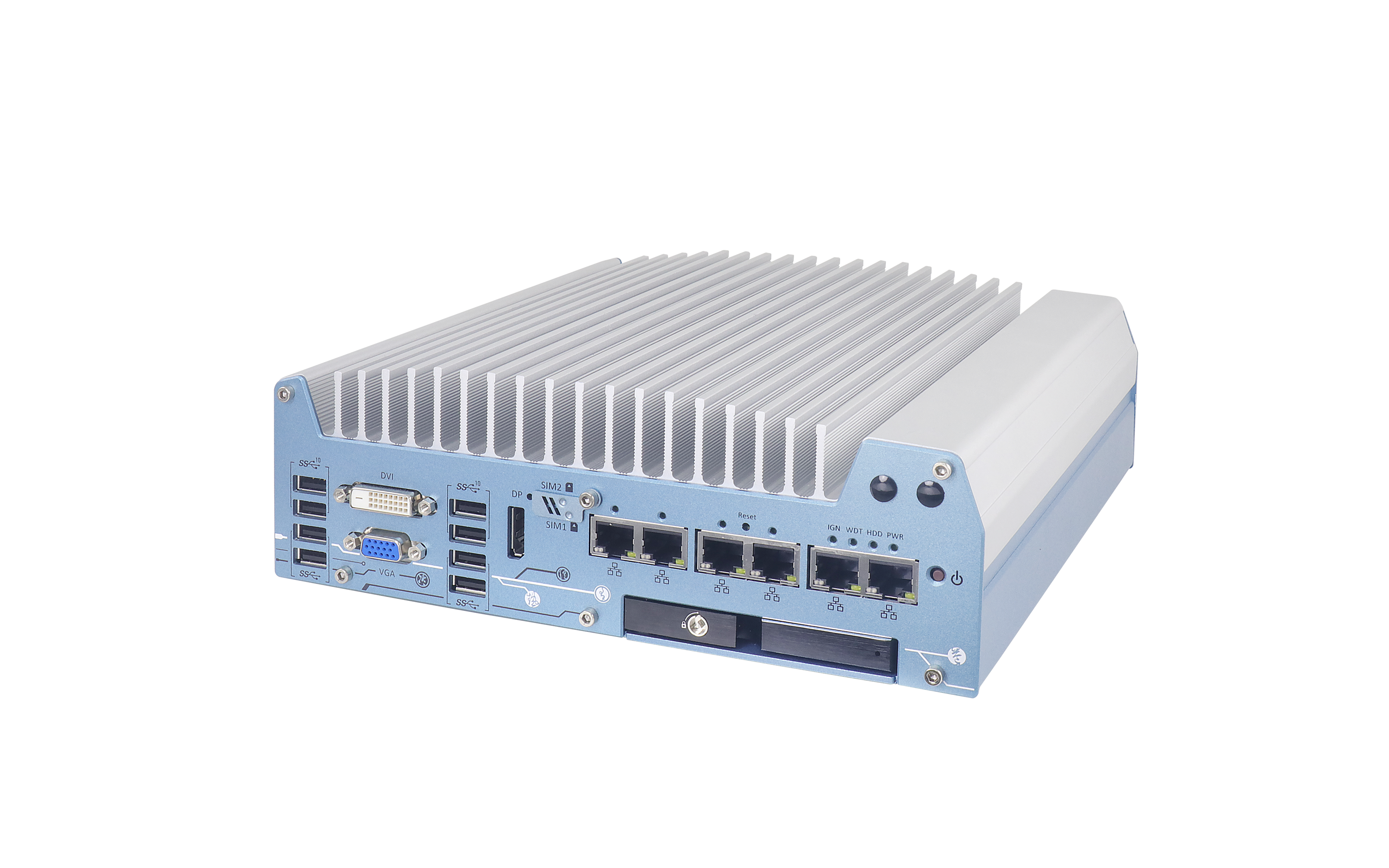

Nuvo-7000LP Series

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 fanless rugged embedded computer with 6x GbE, MezIO™ interface & low-profile chassis

Features and Benefits:

• Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU
• Low-profile chassis with hot-swappable 2.5" HDD/ SSD tray
• MezIO™ interface for easy function expansion
• Rugged, wide temperature range from -25°C to 70°C fanless operation
• Up to 6x GigE ports, supporting 9.5 KB jumbo frame
• M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
• 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
• VGA/DVI/DP triple independent display, supporting 4K2K resolution

Certifications

DATASHEET DOWNLOAD  GET A QUOTE

---

Introduction

Introducing Neousys Technology's 2018 flagship rugged fanless embedded computers, the new Nuvo-7000LP series, powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 8/ 6-core architecture that offer a significant performance improvement over previous 6th or 7th-Gen platforms.

Nuvo-7000LP series is a derivative of Nuvo-7000 series that features the same level of ruggedness and versatility in a 79mm low-profile chassis. In addition to effective fanless design, proprietary MezIO™ interface and plethora of on-board I/O interfaces, Nuvo-7000LP series features one front-accessible, hot-swappable HDD/ SSD tray which can be configured as RAID 0/1 when combined with the internal SATA port. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed, or install an Intel® Optane™ memory for the ultimate system acceleration.

Neousys Nuvo-7000LP series consolidates the latest Intel 8th/ 9th CPU, high-speed I/O interfaces, super-fast disk access and flexible storage configuration to form a high-performance ruggedized embedded computer. In addition, you can also take advantage of the built-in MezIO™ interface to add on modules for application-specific I/Os.



---

Product Highlights
