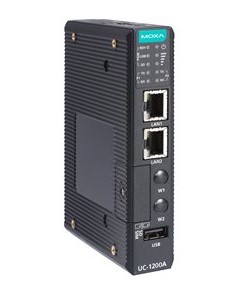

UC-1200A Series
Arm Cortex-A53 dual-core 64-bit 1-GHz industrial computers with 1 mPCIe expansion slot, -40 to 60°C operating temperature
.jpg)
Features and Benefits
- Armv8 Cortex-A53 dual-core 1 GHz processor
- 2 auto-sensing 10/100/1000 Mbps Ethernet ports
- Rich programmable LEDs and a programmable button for easy installation and maintenance
- Mini-PCIe slot for wireless module
- -40 to 60°C operating temperature range
- Long-term Linux support until 2031; includes bug fixes and security patches
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The UC-1200A computing platform is designed for embedded data-acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-1200A to a variety of complex communications solutions.
The UC-1200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

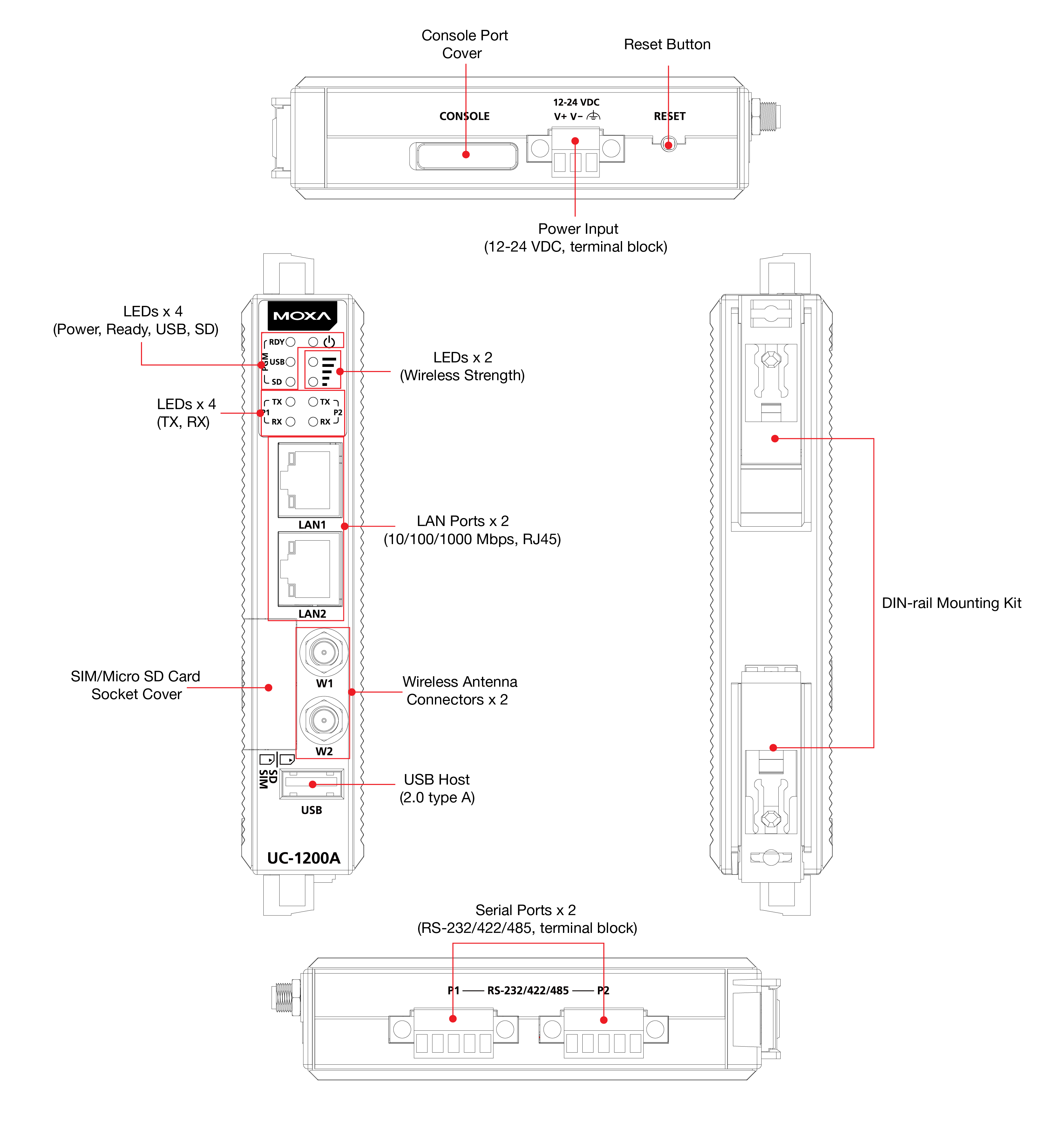

Appearance
