Embedded Computing / Compact/Fanless Computers / UC-3400A Series

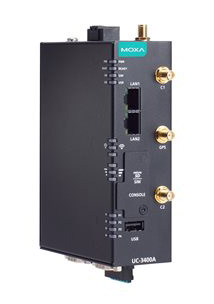

UC-3400A Series

Arm Cortex-A53 quad-core 64-bit computers with wireless expansion capabilities



Features and Benefits

  •  Armv8 Cortex-A53 1.4 GHz processor
  •  Integrated 4G LTE Cat. 4 module with dual SIM and AT&T approval
  •  Wi-Fi 6 built-in
  •  2 auto-sensing 10/100/1000 Mbps Ethernet ports
  •  CAN ports with 2-kV isolation protection
  •  Moxa Industrial Linux with 10-year superior long-term support
  •  Compliance with IEC 62443-4-2 Security Level 2 requirements
  •  CE/FCC/UL certifications
  •  -40 to 70°C operating temperature range


Certifications



DATASHEET DOWNLOAD    GET A QUOTE


Introduction

Moxa’s UC-3400A Series computers can be used as edge gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3400A’s advanced heat-dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize data pre-processing and transmission capabilities of your applications in harsh operating environments.

The UC-3400A is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3400A comes equipped with Moxa Industrial Linux, a high-performance industrial-grade Linux distribution with long-term support that is developed by Moxa.

Applications

  • Remote Terminal Unit (RTU)
  • Data acquisition
  • M2M communication (smart gateway)
  • Digital signage
  • Factory automation
  • In-vehicle monitor/data logger (transportation)
  • Programmable router
  • Energy usage optimization
  • Predictive maintenance
  • Asset management

Appearance

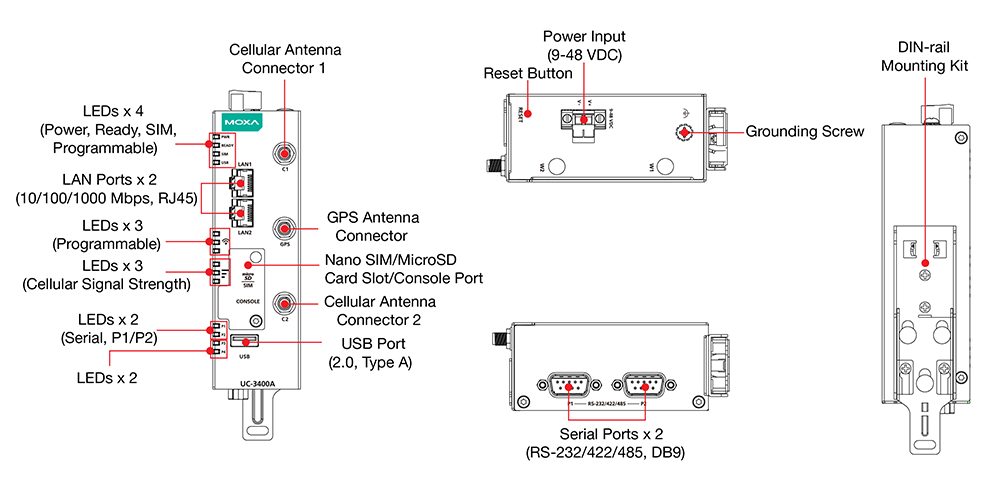

UC-3420A-T-LTE

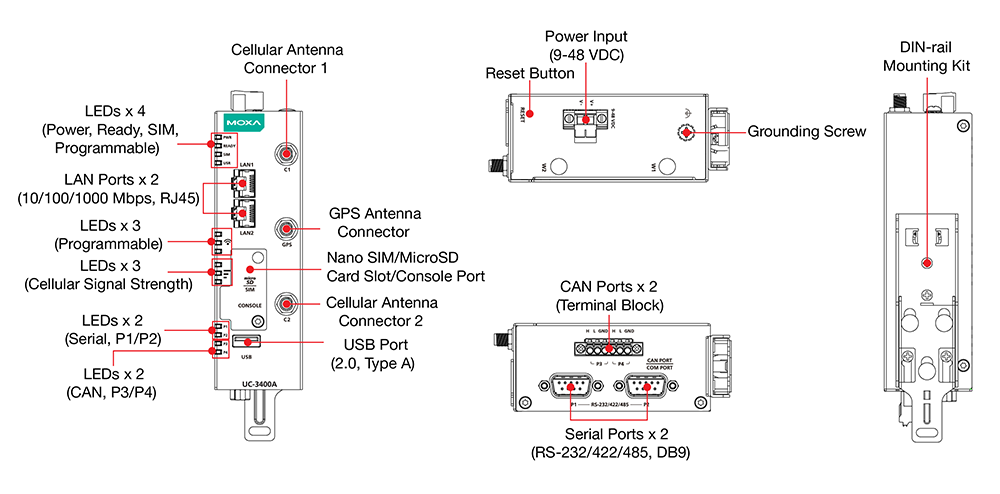

UC-3424A-T-LTE

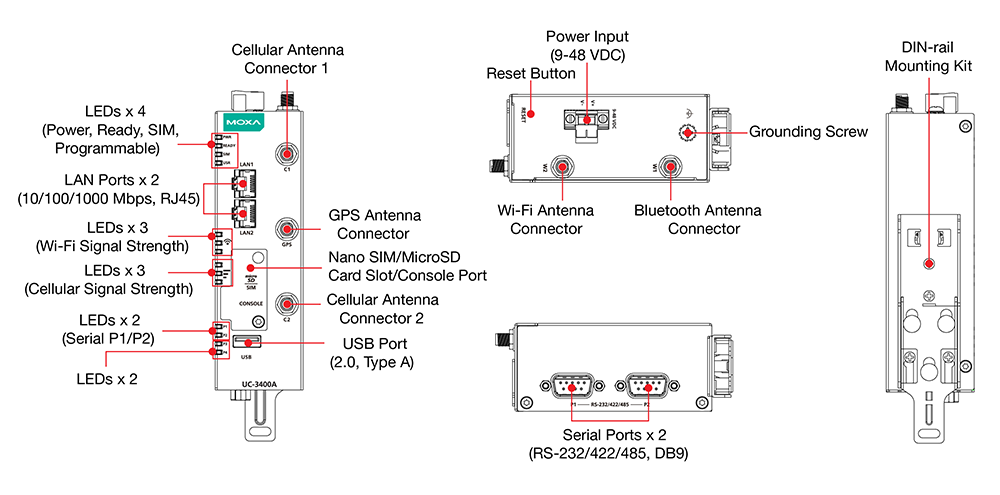

UC-3430A-T-LTE-WiFi

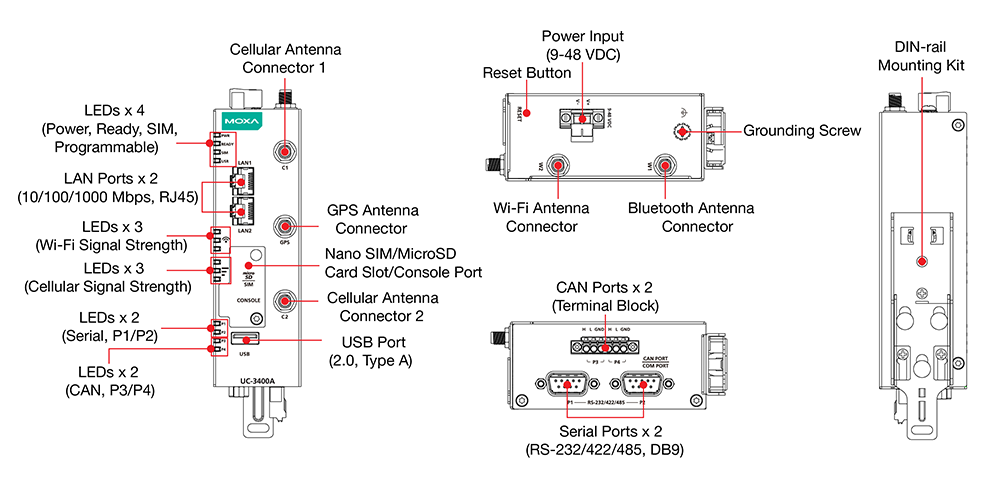

UC-3434A-T-LTE-WiFi
