Embedded Computing / Compact/Fanless Computers / UC-4400A Series

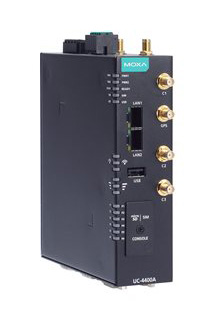

UC-4400A Series

Arm Cortex-A53 quad-core 64-bit computers with LTE/5G and Wi-Fi 6E capabilities

UC4400A

Features and Benefits

  •  Arm Cortex-A53 quad-core 1.6 GHz processor
  •  Integrated 5G Sub-6GHz NR module with dual SIM and AT&T approval
  •  2 auto-sensing 10/100/1000 Mbps Ethernet ports
  •  CANbus and serial port with 2-kV isolation protection
  •  Moxa Industrial Linux with 10-year superior long-term support
  •  Wi-Fi 6E and 4G LTE Cat.4 support with optional accessory
  •  Dual SIM slots
  •  CE/FCC/UL certifications
  •  Ready for ISA/IEC 62443-4-2 SL2 certification
  •  -40 to 75°C operating temperature range (-40 to 70°C with cellular module enabled)

Certifications



DATASHEET DOWNLOAD    GET A QUOTE


Introduction

The UC-4400A computing platform is designed for embedded data-acquisition applications. The computer comes with up to four RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and up to 2 CAN ports as well as a Mini PCIe and M.2 E socket to support LTE Cat. 4 and Wi-Fi 6E modules. These versatile capabilities let users efficiently adapt the UC-4400A to a variety of complex communications solutions.

The UC-4400A is built around a Arm Cortex-A53 quad-core processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny, embedded computer is a reliable and secure gateway for data acquisition and data processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide temperature cellular-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the cellular-enabled computing platforms are suitable for wide-temperature applications.

Applications

  • Solar/wind energy
  • Battery Energy Storage
  • EV Charging Infrastructure
  • Facility monitoring
  • Machine monitoring
  • Oil & Gas
  • Water & Wastewater
  • Intelligent transportation system
  • Various IIoT gateway applications

Appearance

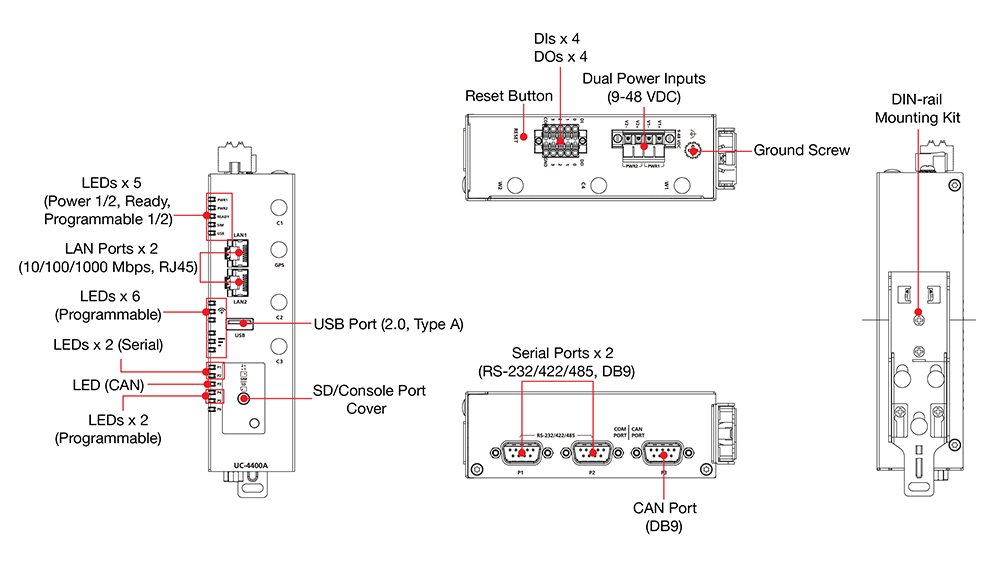

UC-4410A Models

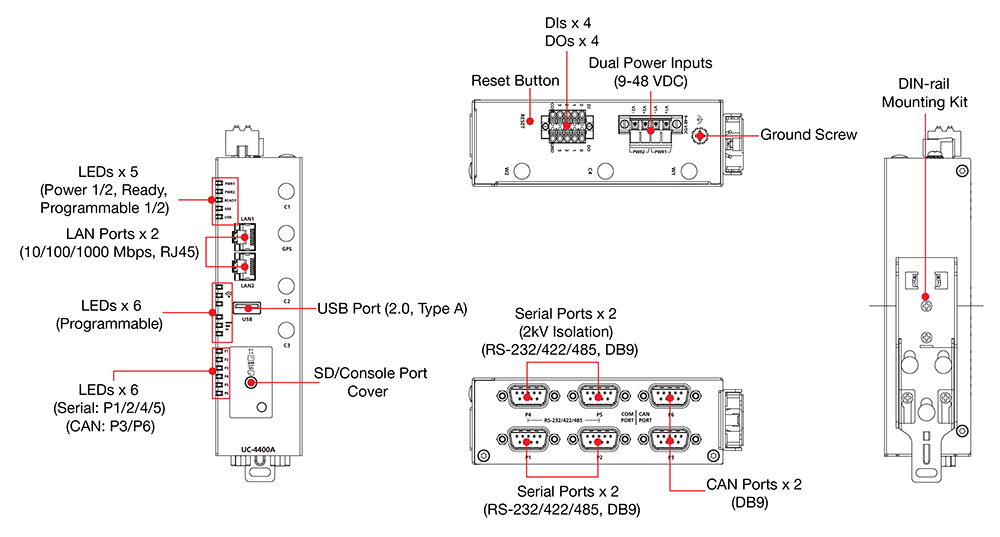

UC-4414A Models

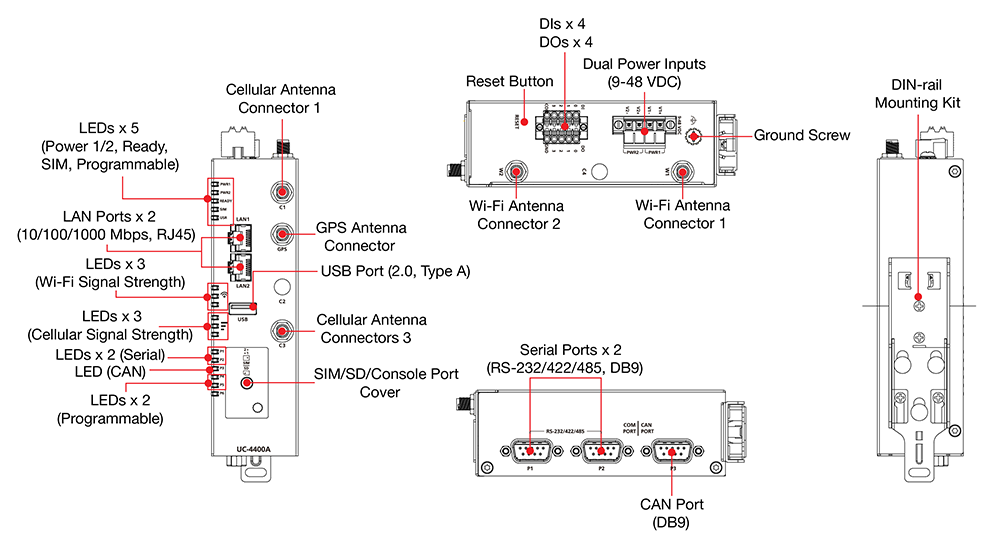

UC-4430A Models

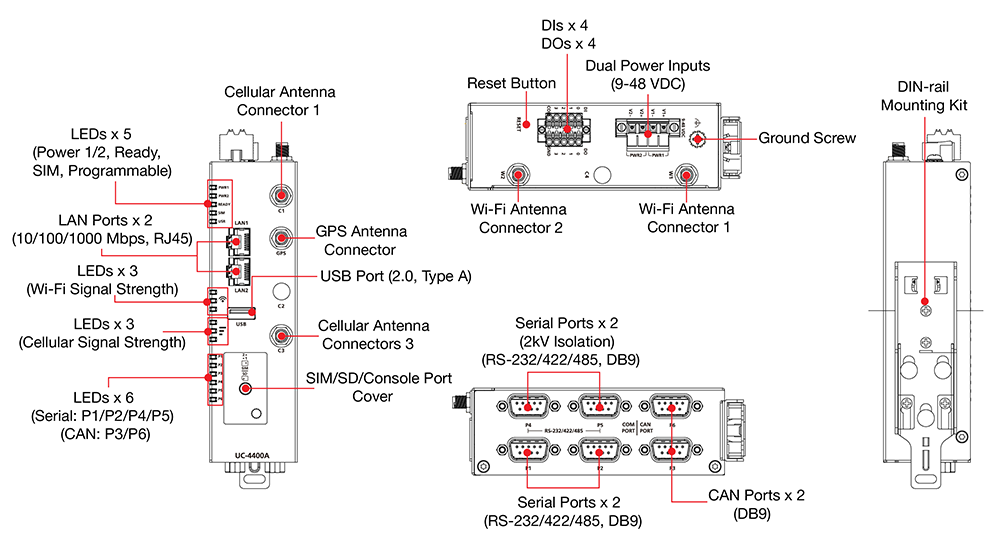

UC-4434A Models

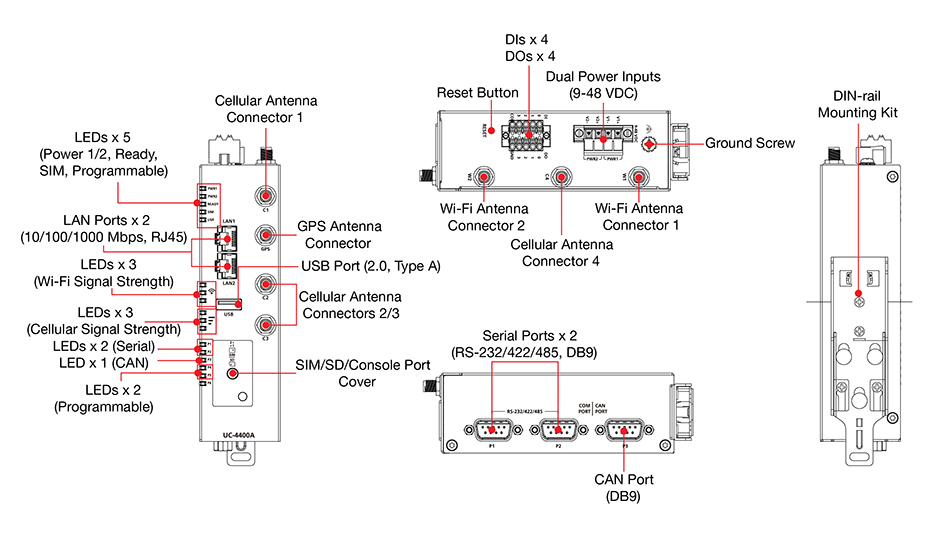

UC-4450A Models

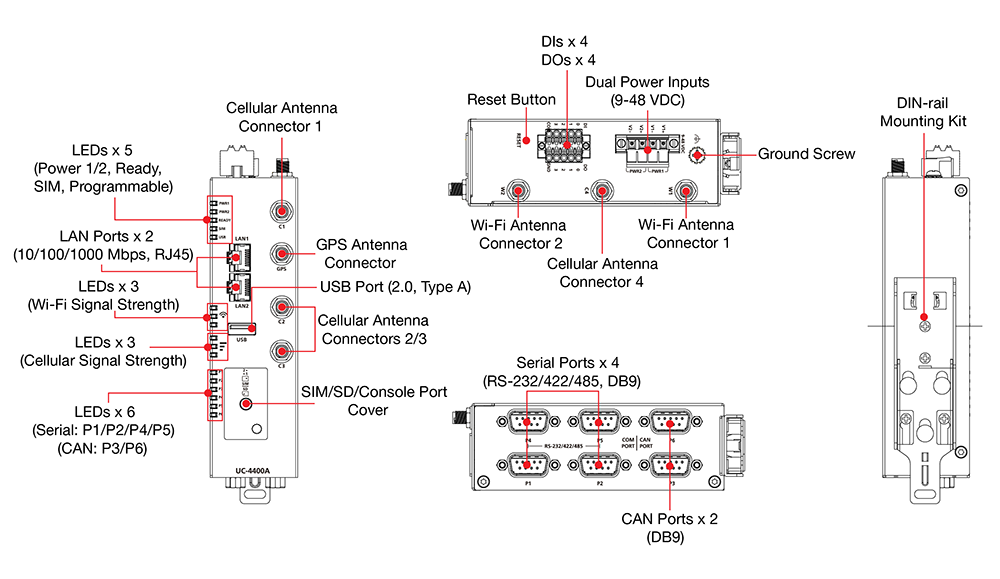

UC-4454A Models
