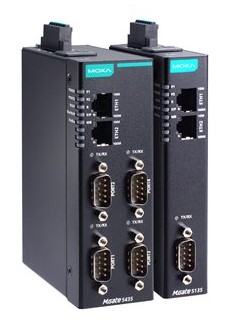

MGate 5135/5435 Series

1 and 4-port Modbus RTU/ASCII/TCP-to-Ethernet/IP gateways

Features and Benefits:

• Protocol conversion between Modbus and EtherNet/IP
• Supports EtherNet/IP adapter
• Supports Modbus RTU/ASCII/TCP client
• Flexible deployment with Ethernet cascading and dual subnet
• Embedded traffic monitoring/diagnostic information for easy troubleshooting
• Easy device configuration via a web-based console
• microSD card for configuration backup/duplication
• Supports dual redundant DC power inputs and 1 relay output
• -40 to 75°C wide operating temperature models available
• Serial port with 2 kV isolation protection
• Developed according to IEC 62443-4-2 with Secure Boot

Certifications

•
•

DATASHEET DOWNLOAD    GET A QUOTE

---

Introduction

The MGate 5135 /5435 gateways are 1- and 4-port industrial Ethernet gateways, respectively for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5135/5435 gateway as a Modbus client to collect data and exchange data with the EtherNet/IP host. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.

Easy Configuration

The MGate 5135/5435 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5135/5435 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways also provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts and the need to open the chassis.

Easy Troubleshooting

The MGate 5135/5435 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time.
