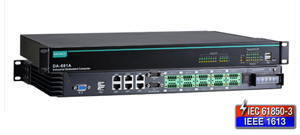

DA-681A Series

x86 1U 19 inch rackmount computers with 3rd Gen Intel® Core™ Celeron 1.4GHz CPU, 2 isolated RS-232/422/485 and 10 isolated RS-485 ports, 6 LANs, VGA, mSATA, USB

DA-681A

Features and benefits:

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for powerSmart Recovery Utility substation automation systems (DPP and DPP-T models only)
  • 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz CPU
  • 1 built-in DDR3 memory socket
  • 1 mSATA for OS and 1 SATA III for storage expansion
  • 6 Gigabit Ethernet ports for network redundancy
  • 4 USB 2.0 ports for high speed peripherals
  • 2 isolated RS-232/422/485 and 10 isolated RS-485 ports
  • Embedded Debian 8 Linux (W7E by CTOS) ››Supports both 100 to 240 VAC and VDC power inputs (single power and dual power models available)
  • Optional IRIG-B expansion module available on DPP and DPP-T models
  • Fanless design

Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxamoxa-ul-listed-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE

Introduction

The Moxa DA-681A Series x86-based rack-mount embedded computers are designed for control, monitoring, data acquisition, and protocol conversion applications. With its robust design, the DA-681A is suitable for industrial automation applications, such as power automation, transportation, and oil and gas.

The DA-681A’s main operating system is based on the 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz CPU and HM65 chipset, which supports standard x86, 1 x VGA, 4 x USB, 6 Gigabit LAN ports, 2 RS/232/422/485 3-in-1 serial ports, and 10 RS-485 (RS-422 by CV) ports. The DA-681A has a mini PCIe socket for mSATA and comes with Linux pre-installed; Windows 7 Embedded is also supported by the CTOS (Configuration To Order Service) process.

Another plus is that the serial ports come with 2 kV digital galvanic isolation protection to guarantee communication reliability in harsh industrial environments. In addition, the state-of-art IEC 61850-3, IEEE 1613, and IEC 60255 compliance all-in-one design provides rich interfaces especially well suited for of power substation automation applications.
