Embedded Computing / Rackmount Computer / DA-660A
DA-660A
RISC 19-inch rackmount data acquisition computers with 8 to 16 serial ports, 4 Ethernet ports, USB
Features and Benefits:
- MoxaMacro 500 MHz processor with 128 MB onboard RAM and 32 MB flash memory
- 8 to 16 software-selectable RS-232/422/485 serial ports
- 8 to 16 jumper-configurable 1/150 kΩ pull high/low and 120 ohm termination resistors
- 15 kV ESD protection for all serial signals
- Quad 10/100 Mbps Ethernet ports
- USB and CF slots for storage expansion
- Standard 19-inch rackmount installation, 1U height
- Wide-range 100 to 240 VAC power input
- LCM display and keypad for HMI
- Ready-to-run Linux OS platform
- Robust, fanless design
- Models with serial port isolation protection available
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The DA-660A Series Arm-based, ready-to-run embedded computers are designed for industrial data-acquisition applications. The computers have 8 to 16 RS-232/422/485 serial ports, 4 Ethernet ports, and 2 USB 2.0 ports, all based on the MoxaMacro communication processor. In addition, the DA-662A-I-8/16-LX’s serial ports come with high-level interference protection. The housing is a standard 1U, 19-inch wide rack-mountable rugged enclosure. The robust, rack-mountable mechanism design provides the hardened protection needed for industrial environment applications, and makes it easy for users to install the DA-660A computers on a standard 19-inch rackmount.
The DA-660A computers are ideal for applications that require a distributed embedded technology, such as SCADA systems, plant-floor automation, and power electricity monitoring applications.
Appearance
Front View (DA-662A-8)

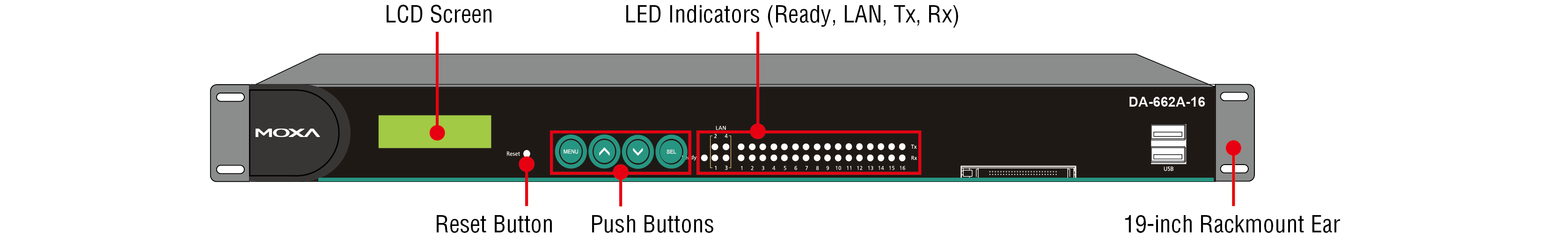

Front View (DA-662A-16)

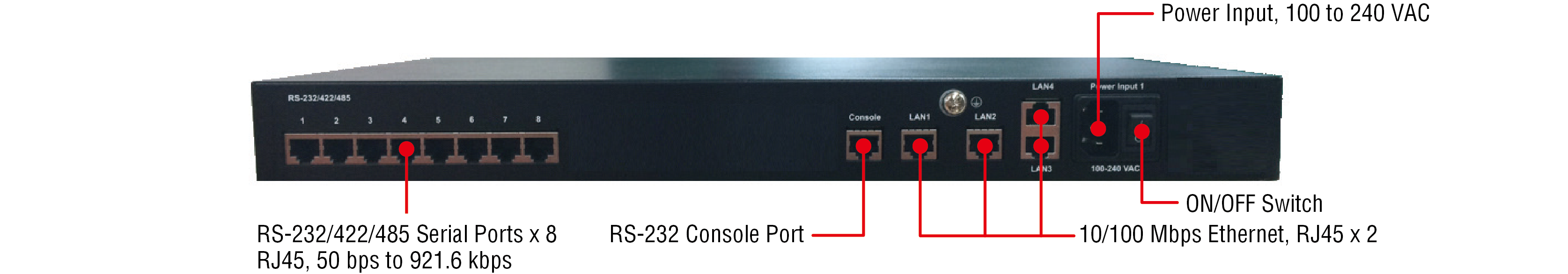

Rear View (DA-662A-8)

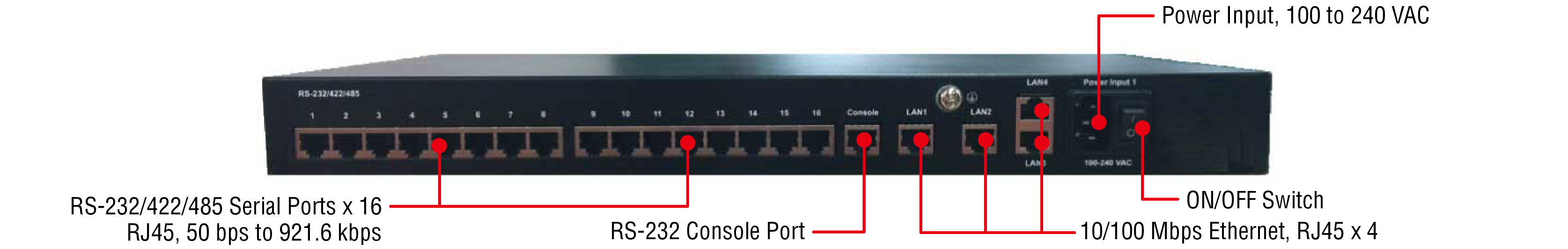

Rear View (DA-662A-16)
