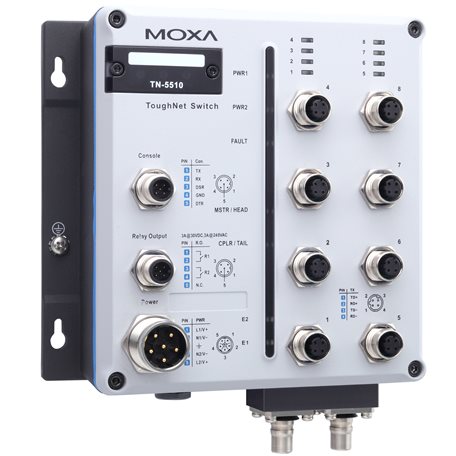

TN-5510-2GLSX-ODC Series
EN 50155 8 FE M12+2 GbE fiber Q-ODC ports L2 managed switch
Features and Benefits:
- Three rotary switches for setting the last 3 digits of the IP address makes maintenance even easier
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- Leading EN 50155-compliant Gigabit Ethernet switches for rolling stock applications
- DHCP Option 82 for IP address assignment with different policies
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network status
- Lock port allows access by only authorized MAC addresses
- Port mirroring for online debugging
- Automatic warning by exception through email and relay output
- Line-swap fast recovery
- Automatic recovery of connected device’s IP addresses
- LLDP for automatic topology discovery in network management software
- Configurable by web browser, Telnet/serial console, and Windows utility
- Panel mounting or DIN rail mounting installation capability
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The ToughNet TN-5510-2GLSX-ODC series M12 managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TN series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5510-2GLSX-ODC-LV-WV switches provide the wide power input range of 12/24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 12/24/36/48 VDC or 24/36/48/72/96/110 VDC dual, isolated redundant power supply increases the reliability of your communications system and saves on cabling/wiring costs.
The TN-5510-2GLSX-ODC switches provide 8 Fast Ethernet M12 ports, and 2 ports on the down side to provide the Gigabit fiber interface with an embedded 2 km multimode fiber transceiver. Models with an extended operating temperature range of -40 to 75°C are available. The TN-5500 series are compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
