Industrial Ethernet / IEC 61850-3 Ethernet Switches / PT-508 Series

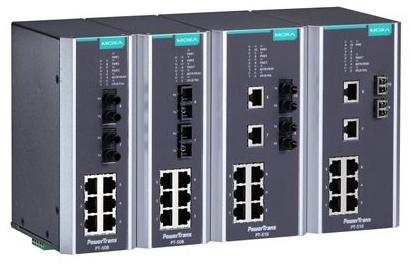

PT-508 Series
IEC 61850-3 8-port managed DIN-Rail Ethernet switches
-412x266.jpg)
Features and Benefits:
- Command line interface (CLI) for quickly configuring major managed functions*
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- Software-based IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
- VLAN Unaware: Supports priority-tagged frames to be received by specific devices
- DHCP Option 82 for IP address assignment with different policies
- EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
- Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- Bandwidth management prevents unpredictable network status
- Multi-port mirroring for online debugging
- Automatic warning by exception through email, relay output
- RMON for efficient network monitoring and proactive capability
- Automatic recovery of connected devices' IP addresses
- Line-swap fast recovery
- Configurable by Web browser, Telnet/Serial console, CLI*, Windows utility, and ABC-01 automatic backup configurator
- Works with MXview industrial network management software
Certifications
Introduction
The PowerTrans PT-508 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508's optical fiber fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on switchescabling/wiring costs. In addition, the DIN-Rail and wallmount design of the PT-508 makes network planning easy, and allows greater flexibility by letting you install up to 8 fast Ethernet ports for power distribution applications.
