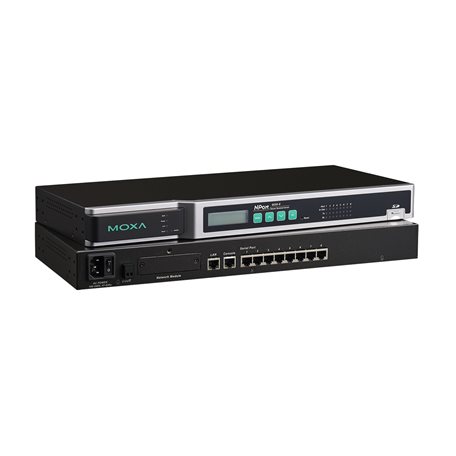

NPort 6610/6650 Series
8, 16, and 32-port RS-232/422/485 rackmount terminal servers
Features and Benefits
- Up to 32 ports for high density environments
- Non-standard baudrates supported with high precision
- Port buffers for storing serial data when the Ethernet is off-line
- Supports IPv6
- Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
- Modular design for scalability
- DES/3DES/AES for highly secure data transmissions
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The NPort® 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6600 ensures data transmission integrity with support of DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6600, and each serial port on the NPort® can be configured independently for RS-232, RS-422, or RS-485 transmission.
LCD Panel Makes Configuration Easy
The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.
Note: The LCD panel is only available with standard temperature models.
Adjustable Resistor Values for RS-485 Communication

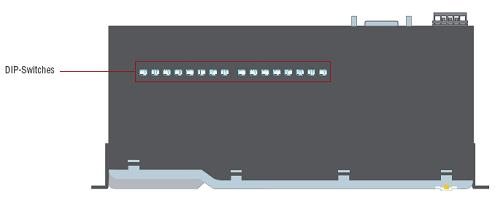

The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches.
