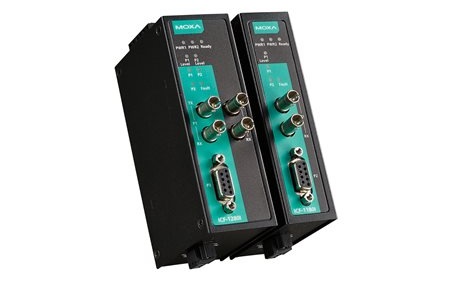

ICF-1180I Series

2-port industrial PROFIBUS-to-fiber converters

Introduction

The ICF-1280I series industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1280I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.

DATASHEET DOWNLOAD

Features and Benefits

• Redundant fiber ring with zero recovery time
• Examine network-wide fiber communication from a single converter
• Auto baudrate detection and data speed up to 12 Mbps
• PROFIBUS bus fail prevents corrupted datagram in functioning segment
• Alarm by relay output
• 2 kV galvanic isolation protection
• Dual power inputs for redundancy
• Extends PROFIBUS transmission distance up to 45 km
• Wide temperature model available for -40 to 75°C environments
