Serial To Ethernet / Terminal Servers / NPort 6450 Series

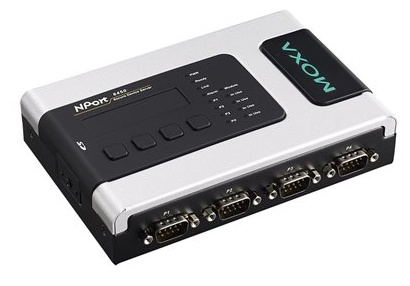

NPort 6450 Series

4-port RS-232/422/485 secure terminal server

NPort 6450 Series

Features and Benefits

  • LCD panel for easy IP address configuration
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Non-standard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is off-line
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The NPort® 6450 is a 4-port device server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 4 serial devices of any type can be connected to the NPort® 6450, witn all four devices using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection.

Zero Data Loss if Ethernet Connection Fails

The NPort® 6450 is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6450 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6450 will immediately release all data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.
