IP Surveillance / IP Camera / VPort P16-M12 Series

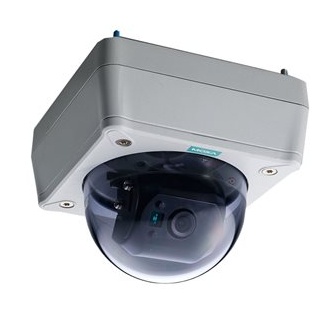

VPort P16-M12 Series
EN 50155, HD video image, rugged IP cameras
-334x319.jpg)
Introduction
The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature an H.264/MJPEG IP dome, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.
Features and Benefits
- Complies with all EN 50155 mandatory test items* (T1 temperatures: -25 to 55°C; TX temperatures: -40 to 70°C), and compliant with EN 50121-3-2
- 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 frames per second
- Built-in light sensor for day & night images
- High quality video images with DNR and WDR
- Up to 3 H.264 or MJPEG independent video streams
- DynaStream™ supported for network efficiency
- CBR Pro™ supported for high image quality in limited bandwidth transmissions
- Supports DHCP Opt 66/67 for auto-configuration
- ONVIF supported for standardization and interoperability
