Industrial Ethernet / IEC 61850-3 Ethernet Switches / PT-510 Series

PT-510 Series

IEC 61850-3 10-port managed DIN-Rail Ethernet switches

PT-510 Series

Features and Benefits:

  • Command line interface (CLI) for quickly configuring major managed functions*
  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)
  • Software-based IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
  • VLAN Unaware: Supports priority-tagged frames to be received by specific devices
  • DHCP Option 82 for IP address assignment with different policies
  • EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
  • Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
  • IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • Bandwidth management prevents unpredictable network status
  • Multi-port mirroring for online debugging
  • Automatic warning by exception through email, relay output
  • RMON for efficient network monitoring and proactive capability
  • Automatic recovery of connected devices' IP addresses
  • Line-swap fast recovery
  • Configurable by Web browser, Telnet/Serial console, CLI*, Windows utility, and ABC-01 automatic backup configurator
  • Works with MXview industrial network management software

Cyber-security Features:

  • User passwords with multiple levels of security protect against unauthorized configuration
  • SSH/HTTPS is used to encrypt passwords and data
  • Lock switch ports with 802.1x port-based network access control so that only authorized clients can access the port
  • Disable one or more ports to block network traffic
  • 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
  • Secure switch ports so that only specific devices and/or MAC addresses can access the ports
  • Radius/TACACS+ allows you to manage passwords from a central location (available in Q3 Y2011)
  • SNMPv3 provides encrypted authentication and access security



Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD

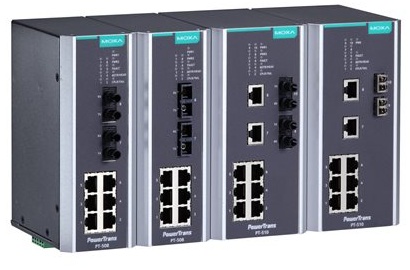

The PowerTrans PT-510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510's optical fiber fast Ethernet backbone, redundant ring, and 24/48 VDC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-Rail and wallmount design of the PT-510 makes network planning easy, and allows greater flexibility by letting you install up to 10 fast Ethernet ports for power distribution applications.
