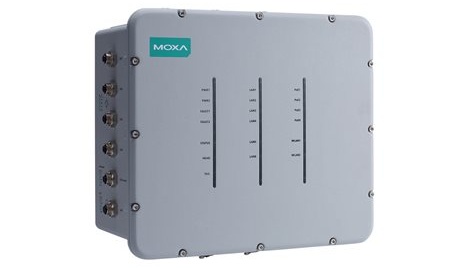

TAP-323 Series

Railway onboard 802.11n IP68 wireless AP

Introduction

The TAP-323 trackside wireless unit is designed for board-to-ground wireless communication. The TAP-323 is a highly compact and rugged wireless unit that integrates two access points, a managed fiber switch, and a wide-range AC/DC power supply into one box. The IP68 housing allows the unit to withstand harsh weather conditions, and M12 connectors make the unit shock and vibration resistant. The TAP- 323 supports advanced controller-based Turbo Roaming technology for train-to-ground wireless applications such as communication-based train control (CBTC) and CCTV. The unit can supply power to up to 4 PoE devices while providing reliable LAN communication with Moxa’s Turbo Chain technology.

DATASHEET DOWNLOAD

*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here.

Features and Benefits

• 2 dual-band radios, IEEE 802.11a/b/g/n compliant
• Railway-approved IP68 housing
• Controller-based Turbo Roaming
• 2 fiber SFP slots and 4 PoE ports with
• M12 LAN connectors High transmission power for extended reach
• Complies with EN 50121-4 specifications for trackside applications
• -40 to 75°C operating temperature range
