PT-7828 Series

IEC 61850-3 / EN 50155 24+4G-port Layer 3 Gigabit modular managed Ethernet switches

PT-7828 Series

Features and Benefits:

  • Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
  • Command Line Interface (CLI) for quickly configuring major managed functions*
  • IPv6 Ready logo awarded (IPv6 Logo Committee certified) Substation Reference Book
  • Software-based IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
  • DHCP Option 82 for IP address assignment with different policies
  • EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
  • Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
  • Modbus/TCP industrial Ethernet protocol supported
  • Supports multicast routing protocols PIM-DM/DVMRP*
  • Supports advanced VLAN capability with Q-in-Q tagging*
  • IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • Bandwidth management prevents unpredictable network status
  • Multi-port mirroring for online debugging
  • Automatic warning by exception through email, relay output
  • Automatic recovery of connected devices' IP addresses
  • RMON for efficient network monitoring and proactive capability
  • Line-swap fast recovery
  • Configurable by Web browser, Telnet/Serial console, CLI* Windows utility, and ABC-01 automatic backup configurator
  • Works with MXview industrial network management software

Cyber-security Features:

  • User passwords with multiple levels of security protect against unauthorized configuration
  • SSH/HTTPS is used to encrypt passwords and data
  • Lock switch ports with 802.1x port-based network access control so that only authorized clients can access the port
  • Disable one or more ports to block network traffic
  • 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
  • Secure switch ports so that only specific devices and/or MAC addresses can access the ports
  • Radius/TACACS+ allows you to manage passwords from a central location (available in Q1 Y2011)
  • SNMPv3 provides encrypted authentication and access security

Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxamoxa-nema-ts2-certification-logo-image.png | Moxamoxa-ul-listed-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxa

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

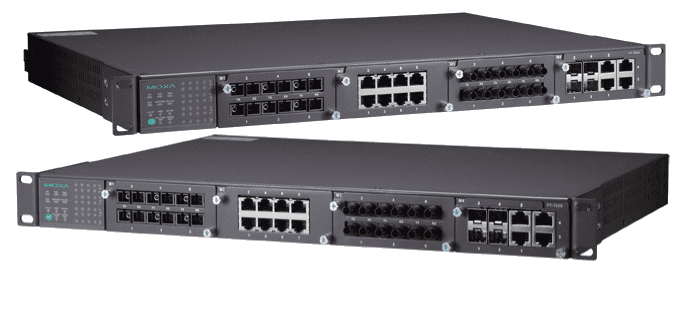

The PowerTrans PT-7828 switches are high performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4).

The PT-7828's Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the PT-7828 makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports. Optional front or rear wiring makes the PT-7828 switches suitable for a variety of applications.

This product supports expansion modules. Click here for info on available modules.
